Article number | BMZ.4525 |
EAN | 7442957184144 |
Color | Bruin |
Dimensions | Length: 25 | Inner diameter: 45 | Outer diameter: 50 |
Dynamic load | 40 N/mm2 |
Friction value | 0,05 tot 0,12 µ |
Material | BRONS/BRONS |
Model | CilinderOTs |

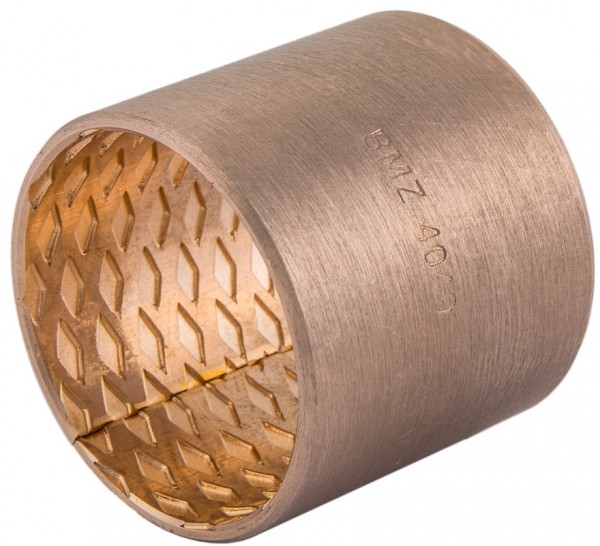

Model Description | Glijlager with smeer-pockets |
Rotation speed | 2,5 m/s |
Static Load | 120 N/mm2 |
Temperatur range | -40 to +250 |
Inner diameter | 45 mm |
Outer diameter | 50 mm |
Length | 25 mm |
Dimensions and weight | |
Length/depth | 2,5 cm |
Width | 5 cm |
Height | 5 cm |
Dimension | 2,5 x 5 x 5 cm ( L x B x H) |
Packaging dimensions | |
Length | 2,5 cm |
Width | 5 cm |
Height | 5 cm |
Weight | 0 kg |
Also found under | |
Sliding Bearings |
