keyboard_arrow_left Back Cylindrical Bushing - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 50/55x60 mm

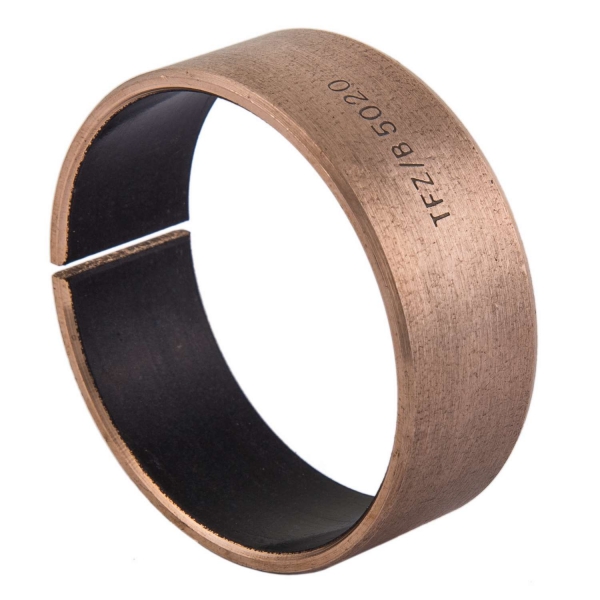

Cylindrical Bushing - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 50/55x60 mm

  • Item number: TFZ_B.5060
  • Brand: GLT
Delivery time unknown.
Choose inner diameter
2 mm
3 mm
4 mm
5 mm
6 mm
8 mm
9 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
15.875 mm
16 mm
17 mm
18 mm
20 mm
22 mm
24 mm
25 mm
26 mm
28 mm
30 mm
32 mm
33 mm
34 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
50 mm
52 mm
55 mm
56 mm
60 mm
65 mm
66 mm
70 mm
72 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
137 mm
140 mm
145 mm
150 mm
155 mm
159 mm
160 mm
165 mm
170 mm
175 mm
180 mm
190 mm
195 mm
200 mm
205 mm
210 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
250 mm
260 mm
265 mm
270 mm
275 mm
280 mm
285 mm
290 mm
300 mm
315 mm
320 mm
330 mm
340 mm
345 mm
350 mm
360 mm
380 mm
420 mm
645 mm
Choose outer diameter
3.5 mm
4.5 mm
5.5 mm
7 mm
8 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
16 mm
17 mm
18 mm
18.258 mm
19 mm
20 mm
22 mm
23 mm
25 mm
27 mm
28 mm
30 mm
32 mm
34 mm
36 mm
37 mm
38 mm
39 mm
40 mm
42 mm
44 mm
46 mm
49 mm
50 mm
55 mm
57 mm
60 mm
65 mm
70 mm
75 mm
77 mm
80 mm
85 mm
87 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
143 mm
145 mm
150 mm
155 mm
160 mm
165 mm
170 mm
175 mm
180 mm
185 mm
186 mm
195 mm
200 mm
205 mm
210 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
245 mm
255 mm
265 mm
270 mm
275 mm
280 mm
285 mm
290 mm
295 mm
305 mm
320 mm
325 mm
335 mm
345 mm
350 mm
355 mm
365 mm
385 mm
425 mm
650 mm
Choose length
3 mm
4 mm
5 mm
5.5 mm
6 mm
7 mm
7.5 mm
7.8 mm
8 mm
8.5 mm
9 mm
10 mm
11 mm
11.5 mm
12 mm
13 mm
14 mm
15 mm
15.875 mm
16 mm
16.5 mm
17 mm
18 mm
19 mm
20 mm
21.5 mm
22 mm
23.5 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
32 mm
34 mm
35 mm
36 mm
37 mm
38 mm
40 mm
42 mm
44 mm
45 mm
46 mm
50 mm
52 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
65 mm
68 mm
70 mm
75 mm
80 mm
85 mm
88 mm
90 mm
94 mm
95 mm
98.5 mm
100 mm
104 mm
110 mm
112 mm
115 mm
120 mm
130 mm
140 mm
150 mm
155 mm
160 mm
164 mm
170 mm
175 mm
180 mm
200 mm
€ 15,38 per piece(s) incl. VAT
€ 15,38 excl. VAT
Choose inner diameter
2 mm
3 mm
4 mm
5 mm
6 mm
8 mm
9 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
15.875 mm
16 mm
17 mm
18 mm
20 mm
22 mm
24 mm
25 mm
26 mm
28 mm
30 mm
32 mm
33 mm
34 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
50 mm
52 mm
55 mm
56 mm
60 mm
65 mm
66 mm
70 mm
72 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
137 mm
140 mm
145 mm
150 mm
155 mm
159 mm
160 mm
165 mm
170 mm
175 mm
180 mm
190 mm
195 mm
200 mm
205 mm
210 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
250 mm
260 mm
265 mm
270 mm
275 mm
280 mm
285 mm
290 mm
300 mm
315 mm
320 mm
330 mm
340 mm
345 mm
350 mm
360 mm
380 mm
420 mm
645 mm
Choose outer diameter
3.5 mm
4.5 mm
5.5 mm
7 mm
8 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
16 mm
17 mm
18 mm
18.258 mm
19 mm
20 mm
22 mm
23 mm
25 mm
27 mm
28 mm
30 mm
32 mm
34 mm
36 mm
37 mm
38 mm
39 mm
40 mm
42 mm
44 mm
46 mm
49 mm
50 mm
55 mm
57 mm
60 mm
65 mm
70 mm
75 mm
77 mm
80 mm
85 mm
87 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
143 mm
145 mm
150 mm
155 mm
160 mm
165 mm
170 mm
175 mm
180 mm
185 mm
186 mm
195 mm
200 mm
205 mm
210 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
245 mm
255 mm
265 mm
270 mm
275 mm
280 mm
285 mm
290 mm
295 mm
305 mm
320 mm
325 mm
335 mm
345 mm
350 mm
355 mm
365 mm
385 mm
425 mm
650 mm
Choose length
3 mm
4 mm
5 mm
5.5 mm
6 mm
7 mm
7.5 mm
7.8 mm
8 mm
8.5 mm
9 mm
10 mm
11 mm
11.5 mm
12 mm
13 mm
14 mm
15 mm
15.875 mm
16 mm
16.5 mm
17 mm
18 mm
19 mm
20 mm
21.5 mm
22 mm
23.5 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
32 mm
34 mm
35 mm
36 mm
37 mm
38 mm
40 mm
42 mm
44 mm
45 mm
46 mm
50 mm
52 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
65 mm
68 mm
70 mm
75 mm
80 mm
85 mm
88 mm
90 mm
94 mm
95 mm
98.5 mm
100 mm
104 mm
110 mm
112 mm
115 mm
120 mm
130 mm
140 mm
150 mm
155 mm
160 mm
164 mm
170 mm
175 mm
180 mm
200 mm
€ 15,38 per piece(s) incl. VAT
€ 15,38 excl. VAT
check25 years of experience
check Customer review 9,2/10
Delivery time unknown. Request a quote for price and delivery time.
More than 20 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • Alternative for INA - Permaglide PAP5060P11
  • Alternative for INA - Permaglide EGB5060E40-B
Specifications
Article number TFZ_B.5060
EAN 04062011193177
applicable forExcellent sliding and wear behaviour, for all types of movement, high load capacity, good corrosion resistance.
As tollerantief7
Diameter HuisH7
Dimensions50/55x60 mm
Dynamic load≤ 140 N/mm² N/mm2
Friction value0,02 up to 0,18 µ
Inner diameter50 mm
Maintenance requiredOnderhoudsvrij
Materiaal Glij oppervlakPTFE
MaterialSintered Bronze / PTFE
Material technicalbronze (CuSn6)
ModelCylinder liner
Model 2TEF-MET/B
Model DescriptionBearing bush - Plain bearing
NormDIN 1494 / ISO 3547
Outer diameter55 mm
Rotation speed<2,5 m/s
Static Load≤ 200 N/mm² N/mm2
Temperatur range–200 to + 280 °C
TypeZB
Length60 mm
Dimensions and weight
Length/depth6 cm
Width5,5 cm
Height5,5 cm
Dimension6 x 5,5 x 5,5 cm ( L x B x H)
Packaging dimensions
Length6 cm
Width5,5 cm
Height5,5 cm
Weight0 kg
Also found under
Sliding Bearings
download Download/print specifications PDF
Cylindrical Bushing - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 50/55x60 mm
Product description

Cylindrical Bushing - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 50/55x60 mm


TEF-MET/B is a versatile, corrosion-resistant dry sliding bearing with PTFE sliding layer. Therefore, no lubrication is necessary. However, additional lubrication is possible in principle!
Wrapped composite sliding bearing Bronze / PTFE coated | Maintenance-free dry sliding bearing | DIN 1494 / ISO 3547 | Corrosion resistance
