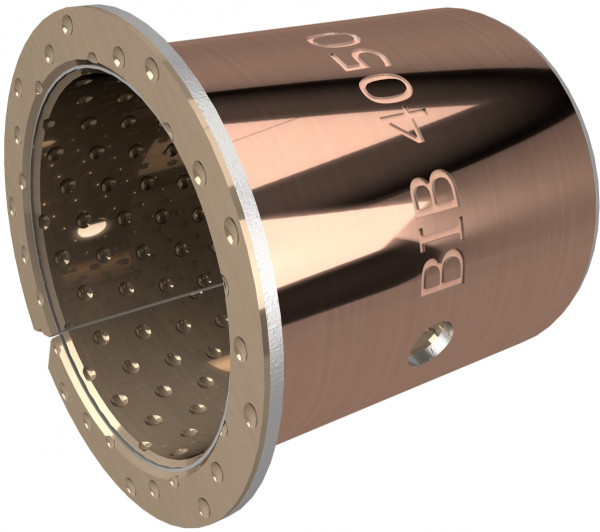

Cylindrical Bushing Flanged - Plain Bearing - BIV-MET - Steel/Bronze - 80/85/100-2.5x27.5 mm

Item number: 65646

local_shipping

Delivery time unknown.

Choose inner diameter

Choose outer diameter

Choose length

Choose flange diameter

Choose

Choose inner diameter

Choose outer diameter

Choose length

Choose flange diameter

Choose

Delivery time or price unknown. Request a quote for price and delivery time.

Quick navigation:

Product description

Specifications

Article number	65646
EAN	04062011305877
applicable for	For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
Dimensions	80/85/100-2.5x27.5 mm
Dynamic load	≤ 140 N/mm² N/mm2
Friction value	0,04 up to 0,12 µ
gelijk aan a	GGB DX10
Inner diameter	80 mm
Maintenance required	Low maintenance
Material	Steel / Bronze
Material technical	steel copper plated (1.0330)
Model	Cylinder liner with flange
Model 2	BIV-MET
Model Description	With lubrication pockets - Low maintenance
Norm	DIN 1494 / ISO 3547
Outer diameter	85 mm
Rotation speed	≤ 2,5 m/s
Static Load	≤ 250 N/mm² N/mm2
Temperatur range	-40 up to +250 °C
Type	BB
Length	27.5 mm
Flange Diameter	100 mm
Flens dikte	2.5

download Download/print specifications PDF

Product description

De Cylindrical Bushing Flanged - Plain Bearing - BIV-MET - Steel/Bronze - 80/85/100-2.5x27.5 mm

BIV-MET is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. Due to the lubricant depots, the relubrication intervals are greatly reduced! For high loads and oscillating movements as well as for rough operation and temperature load.
Wrapped composite sliding bearing with lubrication pockets/ copper-plated steel & CuSn10Pb10 | Low-maintenance | DIN 1494 / ISO 3547
