Cylindrical Bushing Flanged - Plain Bearing - TEF-MET - Sintered Bronze / PTFE - 15/17/231x9 mm

  • Item number: 74780
  • Brand: GLT
local_shipping
Delivery time unknown.
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
17 mm
18 mm
20 mm
22 mm
24 mm
25 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
41 mm
42 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
110 mm
120 mm
130 mm
140 mm
160 mm
190 mm
200 mm
210 mm
215 mm
220 mm
250 mm
300 mm
Choose outer diameter
4.5 mm
5.5 mm
7 mm
8 mm
9 mm
10 mm
11 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
23 mm
25 mm
27 mm
28 mm
32 mm
34 mm
36 mm
39 mm
40 mm
44 mm
45 mm
46 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
105 mm
115 mm
125 mm
135 mm
145 mm
165 mm
195 mm
205 mm
215 mm
220 mm
225 mm
255 mm
305 mm
Choose length
4 mm
4.5 mm
4.8 mm
5 mm
5.5 mm
5.6 mm
6 mm
6.5 mm
6.8 mm
7 mm
7.5 mm
8 mm
8.8 mm
9 mm
9.5 mm
10 mm
10.5 mm
10.8 mm
11 mm
11.5 mm
12 mm
12.5 mm
13 mm
13.5 mm
14 mm
14.5 mm
15 mm
16 mm
16.5 mm
17 mm
18 mm
20 mm
21 mm
21.5 mm
22 mm
22.5 mm
23 mm
23.5 mm
24 mm
25 mm
26 mm
26.5 mm
27 mm
28 mm
30 mm
32 mm
32.5 mm
35 mm
36 mm
37 mm
40 mm
42 mm
42.5 mm
45 mm
50 mm
60 mm
62 mm
70 mm
75 mm
80 mm
90 mm
100 mm
140 mm
Choose flange diameter
7 mm
9 mm
10 mm
12 mm
13 mm
15 mm
16 mm
18 mm
20 mm
21 mm
22 mm
23 mm
24 mm
25 mm
26 mm
30 mm
32 mm
33 mm
35 mm
40 mm
42 mm
46 mm
47 mm
48 mm
53 mm
54 mm
55 mm
58 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
110 mm
120 mm
130 mm
140 mm
150 mm
155 mm
165 mm
190 mm
225 mm
230 mm
235 mm
260 mm
290 mm
320 mm
Choose
0.75
1
1.5
2
2.5
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
17 mm
18 mm
20 mm
22 mm
24 mm
25 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
41 mm
42 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
110 mm
120 mm
130 mm
140 mm
160 mm
190 mm
200 mm
210 mm
215 mm
220 mm
250 mm
300 mm
Choose outer diameter
4.5 mm
5.5 mm
7 mm
8 mm
9 mm
10 mm
11 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
23 mm
25 mm
27 mm
28 mm
32 mm
34 mm
36 mm
39 mm
40 mm
44 mm
45 mm
46 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
105 mm
115 mm
125 mm
135 mm
145 mm
165 mm
195 mm
205 mm
215 mm
220 mm
225 mm
255 mm
305 mm
Choose length
4 mm
4.5 mm
4.8 mm
5 mm
5.5 mm
5.6 mm
6 mm
6.5 mm
6.8 mm
7 mm
7.5 mm
8 mm
8.8 mm
9 mm
9.5 mm
10 mm
10.5 mm
10.8 mm
11 mm
11.5 mm
12 mm
12.5 mm
13 mm
13.5 mm
14 mm
14.5 mm
15 mm
16 mm
16.5 mm
17 mm
18 mm
20 mm
21 mm
21.5 mm
22 mm
22.5 mm
23 mm
23.5 mm
24 mm
25 mm
26 mm
26.5 mm
27 mm
28 mm
30 mm
32 mm
32.5 mm
35 mm
36 mm
37 mm
40 mm
42 mm
42.5 mm
45 mm
50 mm
60 mm
62 mm
70 mm
75 mm
80 mm
90 mm
100 mm
140 mm
Choose flange diameter
7 mm
9 mm
10 mm
12 mm
13 mm
15 mm
16 mm
18 mm
20 mm
21 mm
22 mm
23 mm
24 mm
25 mm
26 mm
30 mm
32 mm
33 mm
35 mm
40 mm
42 mm
46 mm
47 mm
48 mm
53 mm
54 mm
55 mm
58 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
110 mm
120 mm
130 mm
140 mm
150 mm
155 mm
165 mm
190 mm
225 mm
230 mm
235 mm
260 mm
290 mm
320 mm
Choose
0.75
1
1.5
2
2.5
Delivery time or price unknown. Request a quote for price and delivery time.
Quick navigation:
Product description
Specifications
Specifications
Article number 74780
EAN 04062011174305
applicable forExcellent sliding- and wear behaviour, for all types of movement, high load capacity, all-round adaptable.
As tollerantief7
Diameter HuisH7
Dimensions15/17/23-1x9 mm
Dynamic load≤ 140 N/mm² N/mm2
Friction value0,02 up to 0,18 µ
Inner diameter15 mm
Maintenance requiredMaintenance-free
Materiaal Glij oppervlakPTFE
MaterialSteel / PTFE
Material technicalSteel tin-plated (1.0330) + Sintered Bronze + PTFE
ModelCylinder liner with flange
Model 2TEF-MET
Model DescriptionBearing bush - Plain bearing
NormDIN 1494 / ISO 3547
Outer diameter17 mm
Rotation speed≤ 2,5 m/s
Static Load≤ 250 N/mm² N/mm2
Temperatur range– 200 up to + 280 °C
TypeBB
Length9 mm
Flange Diameter23 mm
Flens dikte1
download Download/print specifications PDF

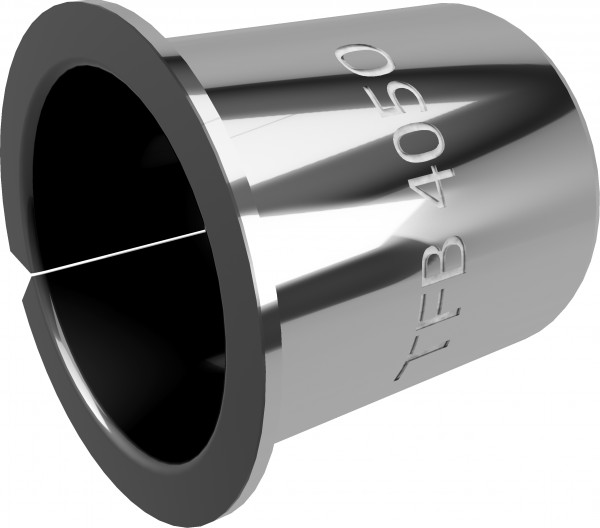

Cylindrical Bushing Flanged - Plain Bearing - TEF-MET - Steel / PTFE - 15/17/231x9 mm
Product description

Cylindrical Bushing Flanged - Plain Bearing - TEF-MET - Steel / PTFE - 15/17/231x9 mm


TEF-MET is a versatile dry sliding bearing with PTFE sliding layer. Therefore, no lubrication is necessary. However, additional lubrication is possible in principle!
Wrapped composite plain bearing steel / PTFE coated | Maintenance-free dry plain bearing | DIN 1494 / ISO 3547
