| In stock | Yes, 1197 pcs |
| Article number | BIZ.6060 |
| EAN | 04062011003186 |
| applicable for | For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage. |
| Dimensions | 60/65x60 mm |
| Dynamic load | ≤ 140 N/mm² N/mm2 |
| Friction value | 0,04 up to 0,12 µ |
| gelijk aan a | GGB DX10 |
| In stock link | 2025-11-12 |
| Inner diameter | 60 mm |
| Maintenance required | Onderhoudsarm |
| Material | SS 305 |
| Material technical | steel copper plated (1.0330) |

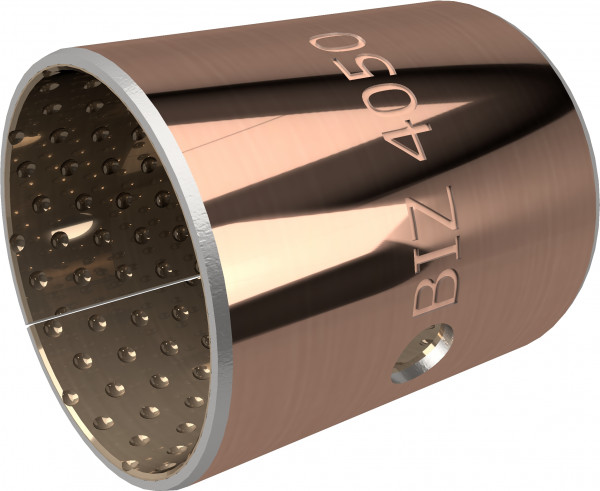

| Model | Cylinder liner |
| Model 2 | BIV-MET |
| Model Description | Met smeer-pockets - Onderhoudsarm |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 65 mm |
| Rotation speed | ≤ 2,5 m/s |
| Static Load | ≤ 250 N/mm² N/mm2 |
| Temperatur range | -40 up to +250 °C |
| Type | ZB |
| Length | 60 mm |
| Dimensions and weight | |
| Length/depth | 6 cm |
| Width | 6,5 cm |
| Height | 6,5 cm |
| Dimension | 6 x 6,5 x 6,5 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 6 cm |
| Width | 6,5 cm |
| Height | 6,5 cm |
| Weight | 0 kg |
