| Article number | BLZ.1020 |
| EAN | 04062011004633 |

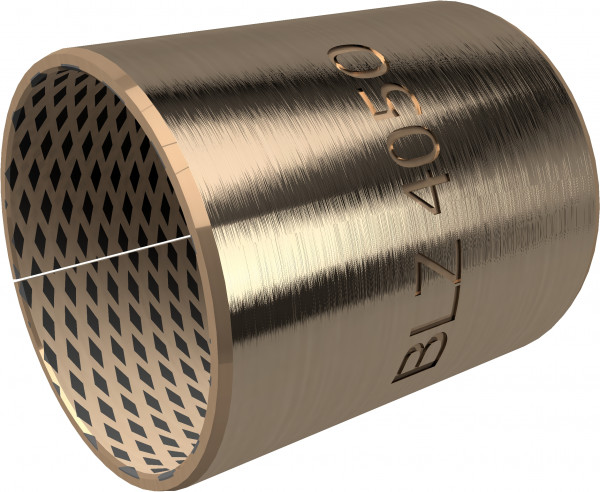

| applicable for | BRO-LUB is a maintenance-free bronze plain bearing with solid lubricant depots. Initial lubrication is necessary! High load capacity with low wear, very suitable for low sliding speeds and oscillating movements. |
| As tollerantie | f7 |
| Diameter Huis | H7 |
| Dimensions | 10/12x20 mm |
| Dynamic load | ≤ 40 N/mm² N/mm2 |
| Friction value | 0,03 up to 0,25 µ |
| Inner diameter | 10 mm |
| Material | Bronze |
| Material technical | Bronze (CuSn8P) |
| Model | Cylinder liner |
| Model 2 | BRO-LUB |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 12 mm |
| Rotation speed | ≤ 2,5 m/s |
| Static Load | ≤ 120 N/mm² N/mm2 |
| Temperatur range | -100 up to +200 °C |
| Type | ZB |
| Length | 20 mm |
| Dimensions and weight | |
| Length/depth | 2 cm |
| Width | 1,2 cm |
| Height | 1,2 cm |
| Dimension | 2 x 1,2 x 1,2 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 2 cm |
| Width | 1,2 cm |
| Height | 1,2 cm |
| Weight | 0 kg |
