| Delivery time | Shipped in 2 - 3 - Day(s) |
| Article number | 48282 |
| EAN | 4064907020628 |
| Color | Silver |
| Connection | Wire Piece x Wire Piece |
| Dimension A | 81mm |
| Dimension B | Rd65x1/6" |
| Dimension C | 32mm |
| Dimension D | 38mm |
| Dimension E | Rd58x1/6" |
| Dimensions | DIN |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4401) |
| Met kraag voor klemschaal? | remove |
| Model | Straight couplings |
| Side A - Size | DN40 DIN 11851 Threaded piece |
| Side B - Size | DN32 DIN 11851 Threaded piece |
| Size | DN40-DN32 |
| Thread | Rd58x1/6" |
| Thread size | Rd65x1/6" |
| Type 2 | Concentric coupling piece Wire x Wire |
| Also found under | |
| Milk Fittings DIN 11851 | |

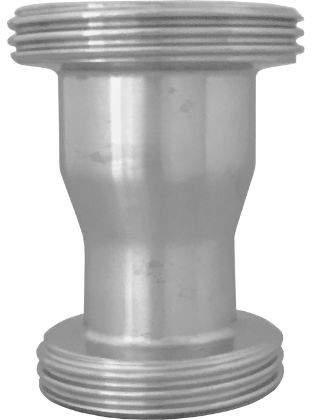

Coupling according to DIN11851one side male adapter (without gasket) - DN40other side male adapter (without gasket) - DN32surface roughness approx. 0.8Ra inside, 1.6Ra outsidemade of stainless steel AISI 316 - 25 bar
