| Article number | 46560 |
| EAN | 6096005469441 |
| Connection | Point piece x BSP bu |
| Dimension A | 38mm |
| Dimension B | 14mm |
| Dimension C | 1/2" BSP |
| Dimension D | SW19 |
| Dimension E | 28mm |
| Flange Diameter | 28mm |
| Material | Stainless steel 304 |
| Material technical | Stainless steel 304 (1.4301) |
| Model | Point pieces |
| Roughness Material | <0.8 µm |
| Side A - Size | DN15 DIN 11851 Point piece |
| Side B - Size | 1/2" BSP Male Thread |
| Size | DN15 |
| Thread size | 1/2" |
| Type 2 | Transition screw-in point piece DIN |
| Work pressure | 40 |
| Also found under | |
| Milk Fittings DIN 11851 | |

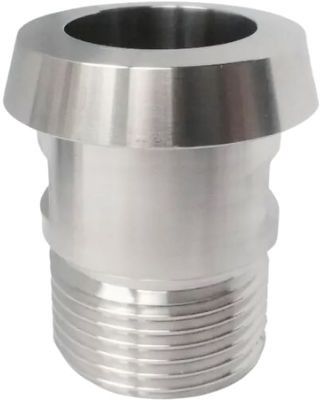

This screw-in nipple is specially designed for a precise and leak-free connection in pipelines. Manufactured from durable 304 stainless steel, it offers good corrosion resistance and a long service life, ideal for industrial applications where hygiene and reliability are essential.
Thanks to the BSP thread, this nipple can be installed quickly and easily, which contributes to efficient operation. It complies with the DIN 11851 standard and is widely applicable in, among others, the food and pharmaceutical industries.
