| Delivery time | Request a quote |
| Article number | 45449 |
| EAN | 6096026759781 |
| applicable for | Drinking water, alcoholic beverages up to 92%, fruit juice and fatty products. |
| Barst pressure | 30 bar |
| Color | White |
| Color | Blue |
| Diameter Hose | 22 |
| Dimensions | Rol (40m) |
| Inner diameter | 22 mm |
| Inner surface | Butyl/IIR |
| Insert | Strong synthetic textile inserts, steel spiral |
| Material | PU (1.4mm) |
| Max length | 40m |
| Model | Food hose |
| Norm | FDA 21 CFR 177.1550, 1935/2004/CE, 1907/2006/CE (REACH), 3A Sanitary Standard Class II |
| Outer diameter | 34 mm |
| Outer surface | NR |
| Quality Mark | FDA 21 CFR 177.2600, DM 21.03.73 E SEGUENTI, EUROPEAN REGLEMENT 1935/2004/CE, 1907/2006/CE (REACH) en 3A Sanitary Standard Class II. |
| Size | 22 |
| Temperatur range | -40°C/+120°C (Max 30min to +150°C) |
| Wall Thickness | 6 mm |
| Work pressure | 10 bar |
| To Fit Hose Size | 22 |
| Length | Rol (40m) |
| Also found under | |
| All Hoses | Suction and Discharge Hoses | |

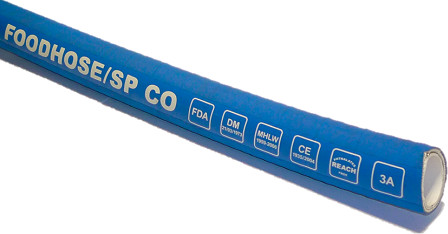

Dairy Hose Food Grade Suction/Pressure Hose SP - FDA - 25x37mm
At NexaParts, we offer the high-quality Suction/Pressure Foodhose SP - FDA - 25x37mm, designed for applications in the food and beverage industry. Available both in rolls and by the meter, it’s suitable for a wide range of needs.
This hose is made from Butyl/IIR/NR, making it perfect for the transport of various liquids and food products, including drinking water, wine, beer, fruit juice, alcoholic beverages up to 92%, and fatty products. With strong synthetic textile reinforcements and a built-in steel spiral, this hose offers exceptional strength and durability.
It meets strict industry standards such as FDA 21 CFR 177.2600, DM 21.03.73 E SEGUENTI, EUROPEAN REGULATION 1935/2004/CE, 1907/2006/CE (REACH), and the 3A Sanitary Standard Class II, making it the ideal choice for hygienic applications. With a temperature range of -40°C to +120°C (up to +150°C for 30 minutes), it is suitable for a wide variety of conditions.
The hose comes in blue and white, aiding in visual identification within industrial environments.
Order your dairy hose from NexaParts – the reliable solution for your liquid transport needs in the food industry!
