| Delivery time | Request a quote |
| In stock | Yes, 6 pcs |
| Article number | 4S14B1101B |
| EAN | 6096036625670 |
| Barst pressure | 50 |
| Color | Silver |
| Connection | MannTek x Internal thread |
| Dimensions | DN80 |
| DN size | DN80 |
| Inner diameter | 3" |
| MannTek Artikelnummer | 4S14B1101B |
| Material | Aluminum |
| Model | Hose unit |
| Model Description | Female |
| Seals | viton |
| Size | DN80 |
| Size | 3 |
| Temperatur range | -20° C to +200° C |
| Thread size | 3 inch |
| Type | koppeling met binnendraad |
| Work pressure | 10 |
| attachment | Configurator MannTek Products |
Dry Disconnect Couplings
Hose unit with swivel, typically mounted on hose assemblies and loading arms for
temporary connection to storage tanks and mobile transport units, for loading and
unloading.
Tank unit without swivel, typically fix mounted as filling connector on storage tanks,
mobile tanks like IBC and ISO containers, road tankers, rail tank containers and
ship manifolds. Quick and safe connection of hose assemblies and loading arms to mobile and
stationary tanks, under pressure and with minimised liquid loss.
The standardised interface to STANAG 3756 with its bayonet coupling principle has
been widely accepted in the industry. Both coupling parts are equipped with a flat
poppet valve. For the connection, the hose unit is pushed onto the tank unit and coupled / sealed
by turning the coupler clockwise by 15 degrees. When the unit is turned by 100
degrees, the valves move into the tank unit so that the medium can flow. When a
similar turn is made counter-clockwise, the flow is stopped and the coupler can be
pulled off.
Certificates: DDC couplings fulfill the requirements of European Pressure
Equipment Directive category 2 (for higher demand on request).
They are suitable for the use in potentially explosive atmosphere (ATEX) zone 1,
approved for the transport of dangerous goods on road (ADR), by rail (RID) and by ship (IMDG), specified as a branch standard from European Chemical Industry
(CEFIC) for handling of Ethylene Oxide/Propylene Oxide, Acrylic Monomers,
Acrylonitrile, polymeric MDI/TDI and Vinyl Chloride.
TÜV TÜ.AGG 304-99, APRAGAZ File ref. 0302/P5832, Lloyd's Register 0038/
ATEX/HAM064017,
TDT-UW-21/16, EAC TC No. RU Д-SE.MЮ62.B.02151
Female (Hose Unit, Coupler)
Self locking quick connect/disconnect coupling, to STANAG 3756, for liquid media.
Hose unit with swivel, typically mounted on hose assemblies and loading arms for
temporary connection to storage tanks and mobile transport units, for loading and
unloading. Quick and safe connection of hose assemblies and loading arms to mobile and
stationary tanks, under pressure and with minimised liquid loss.
The standardised interface to STANAG 3756 with its bayonet coupling principle has
been widely accepted in the industry. Both coupling parts are equipped with a flat
poppet valve. For the connection, the hose unit is pushed onto the tank unit and coupled / sealed
by turning the coupler clockwise by 15 degrees. When the unit is turned by 100
degrees, the valves move into the tank unit so that the medium can flow. When a
similar turn is made counter-clockwise, the flow is stopped and the coupler can be
pulled off.

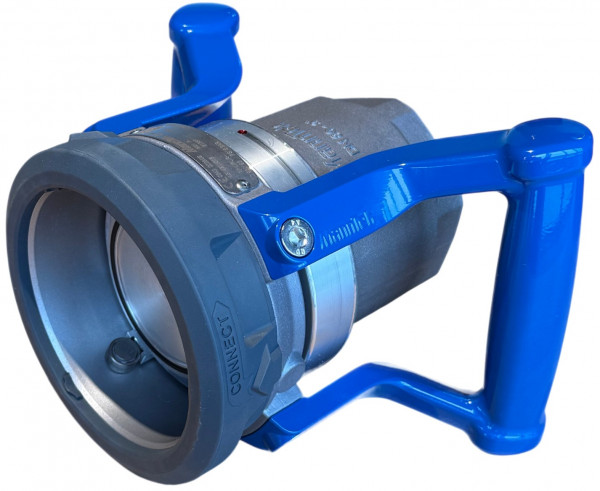

The MannTek Dry Disconnect Coupling Hoseunit - Aluminium - 3" Female Thread - DN80 is a high-quality product from MannTek, designed for safe and efficient fluid transfers. This model is constructed from premium-grade Aluminium, providing excellent durability and resistance to corrosion. It is ideal for use in industrial environments that require reliable, leak-free connections, such as in chemical, fuel, and hazardous liquid handling applications.
Aluminium offers significant advantages in demanding settings. Stainless Steel (SS) is known for its strength and resistance to corrosive substances, making it perfect for handling aggressive fluids. Aluminium, on the other hand, is lightweight and offers good resistance to corrosion, making it suitable for applications where weight is a critical factor.
This product is identified by the MannTek article number S414B1101B, ensuring easy identification and ordering. NexaParts provides a wide selection of MannTek couplings, including this specific MannTek Dry Disconnect Coupling Hoseunit - Aluminium - 3" Female Thread - DN80, to cater to various industrial needs.
Choose the MannTek Dry Disconnect Coupling Hoseunit - Aluminium - 3" Female Thread - DN80 from NexaParts for fast delivery, excellent customer service, and the quality you expect from a trusted brand like MannTek.
