| Delivery time | Shipped in 0 - 0 - Day(s) |
| Article number | 77651 |
| applicable for | Drinking water, alcoholic beverages up to 92%, fruit juice and fatty products. |
| Barst pressure | 90 bar |
| Connection | Incl. 2x Draaibare Flens PN10/40 EN 1092-1 |
| Diameter Hose | 25 |
| Dimensions | 1m |
| Electrical Conduction | R < 10⁶ Ω |
| Inner diameter | 25 mm |
| Inner surface | PTFE |
| Material | PTFE x Stainless Steel 316 |
| Minimum bend radius | 65 mm |
| Model | Food hose |
| Model 2 | Completely assembled hose |
| Norm | FDA 21 CFR 177.1550, EU 10/2011, USP CLASS VI |
| Outer diameter | 36 mm |
| Outer surface | EPDM |
| Quality Mark | FDA 21 CFR 177.1550, EU 10/2011, USP CLASS VI |
| Size | Draaibare Flens PN10/40 EN 1092-1 |
| Size | DN25 |
| Temperatur range | -54°C/+260°C |
| Vacuüm | 0,9 |
| Wall Thickness | 5 mm |
| Work pressure | 30 bar |
| Length | 1m |
| attachment |  |
| Also found under | |
| All Hoses | Stainless Steel Hoses | |

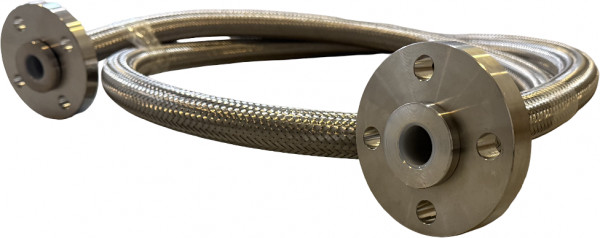

The DN25 PTFE hose with Stainless Steel 316 braided reinforcement is a high-quality, fully assembled flanged hose solution designed for applications where chemical resistance, high temperatures, and reliability are essential. This configuration is supplied complete with EN 1092-1 swivel flanges PN10/40 in Stainless Steel 316, ready for immediate installation.
The hose features a POLARIS H PTFE liner with flared (stub-end) PTFE ends, ensuring a full PTFE wetted surface up to the sealing face. This design eliminates dead zones and reduces contamination risks. The Stainless Steel 316 braid provides enhanced pressure resistance and mechanical protection.
Each PTFE flanged hose DN25 is manufactured to order. Custom lengths, alternative pressure ratings, or different flange standards are available upon request. Every hose is hydrostatically tested, and test certificates are available on request.
This hose is particularly suitable for:
Chemical processing
Food and beverage industry
Pharmaceutical applications
High-temperature processes
Aggressive fluids and gases
✔ Inner liner: POLARIS H PTFE
✔ Design: Flared (stub-end) PTFE
✔ Outer reinforcement: Stainless Steel 316 braid
✔ Flanges: EN 1092-1, swivel type
✔ Pressure rating: PN10/40
✔ Compliance: FDA, EC 1935/2004, REACH
Nominal diameter: DN25 (1")
Connection side A: EN 1092-1 flange DN25 PN10/40 – Stainless Steel 316
Connection side B: EN 1092-1 flange DN25 PN10/40 – Stainless Steel 316
Length: 1 meter (measured flange to flange)
Assembly: Professionally assembled
Working pressure: According to PN10/40, depending on temperature
Testing: Hydrostatically tested (certificate available upon request)
Fully assembled
Ready for installation
Designed for demanding industrial applications
