| In stock | Yes, 7 pcs |
| Article number | SAK12C - GAKR12PW - SAKB12F - POS12EC |
| EAN | 7440846270282 |
| B (Inner ring width) | 16 mm |
| Basic load ratings dynamic | 14 kN |
| Basic load ratings statisch | 19 kN |
| C1 max (Rod end width) | 12.5 mm |
| CN Radial internal clearance | 0 - 0,032 mm |
| Color | Metal |
| d (Bearing bore) | 12 mm |
| d2 max (Rod end diameter) | 34 mm |
| gelijk aan a | SAK..C |
| gelijk aan b | SAKB..F |
| gelijk aan c | GAKR..PW |
| gelijk aan d | TFE..PW |
| gelijk aan e | SZ..PW |
| gelijk aan f | POS..EC |
| gelijk aan g | TSM..C |
| gelijk aan h | BEM.. |
| gelijk aan i | FBM.. |
| gelijk aan j | IKA..W |
| h (Shank length) | 54 mm |
| L1 min (Thread length) | 32 mm |
| Maintenance required | No |
| Material | ST 52-3 Galvanized |

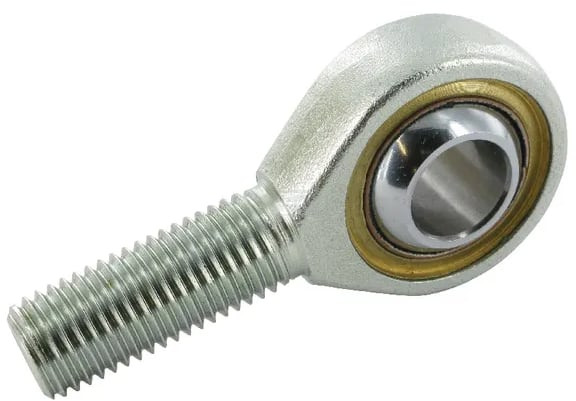

| Model | Rod end maintenance free |
| Model Description | 5-30mm |
| Norm | DIN ISO 12 240-4-series K, Form F |
| Thread size | M12 |
| Tilting angle | 12 α° ≈ |
| Maintenance Nippel | No |
| Total height Rod end (L, L2, L4) | 71 |
