| Delivery time | Shipped in 5 - 7 - Day(s) |

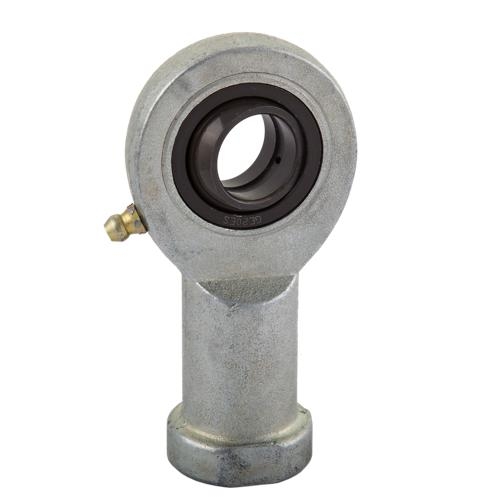

| Article number | SI35ES-2RS - GIR35DO-2RS - SIA35ES-2RS |
| EAN | 7440846259270 |
| Color | Metaal |
| Material | C45 Tinted |
| Model | Stangkop onderhoudsplichtig |
| B (Inner ring width) | 25 mm |
| Basic load ratings dynamic | 79 kN |
| Basic load ratings statisch | 146 kN |
| C1 max (Rod end width) | 22 mm |
| CN Radial internal clearance | 0,037 - 0,100 mm |
| d (Bearing bore) | 35 mm |
| d2 max (Rod end diameter) | 82 mm |
| h1 (Shank length) | 125 mm |
| L3 min (Thread length) | 60 mm |
| Maintenance Nippel | Yes |
| Maintenance required | Yes |
| Norm | DIN ISO 12 240-4-series E, Form F |
| Thread size | M36x3 |
| Tilting angle | 6 α° ≈ |
| Total height Rod end (L, L2, L4) | 166 |
| Dimensions and weight | |
| Weight | 1.52 Kg |
| Also found under | |
| Rod Ends | Rod Ends Screwing | |
