| Delivery time | Shipped in 5 - 7 - Day(s) |

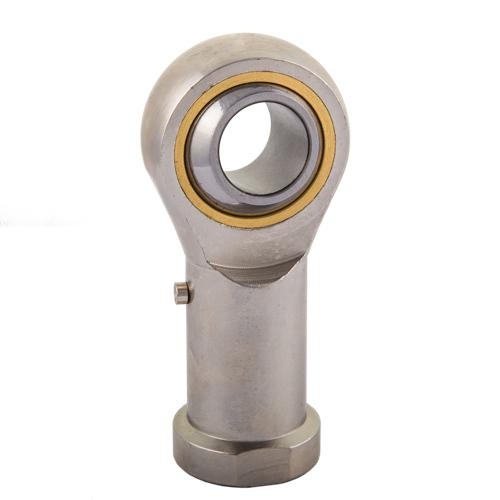

| Article number | SIBP6S - GIKR6PB - SIKAC6M |
| EAN | 7440846262256 |
| B (Inner ring width) | 9 mm |
| Basic load ratings dynamic | 4.3 kN |
| Basic load ratings statisch | 5.3 kN |
| C1 max (Rod end width) | 6.75 mm |
| CN Radial internal clearance | 0 - 0,035 mm |
| Color | Metal |
| d (Bearing bore) | 6 mm |
| d2 max (Rod end diameter) | 18 mm |
| gelijk aan a | SIBP..S |
| gelijk aan b | SIKAC..M |
| gelijk aan c | GIKR..PB |
| gelijk aan d | SP..PB |
| gelijk aan e | GI.. |
| gelijk aan f | PHS.. |
| gelijk aan g | TSF.. |
| gelijk aan h | JAF.. |
| gelijk aan i | IKI.. |
| gelijk aan j | KI..A |
| h (Shank length) | 30 mm |
| L3 min (Thread length) | 14 mm |
| Maintenance required | check |
| Material | ST 52-3 Galvanized |
| Model | Rod end requiring maintenance |
| Model Description | 5-30mm |
| Norm | DIN ISO 12 240-4-series K, Form F |
| Thread size | M6 |
| Tilting angle | 13 α° ≈ |
| Maintenance Nippel | check |
| Total height Rod end (L, L2, L4) | 39 |
