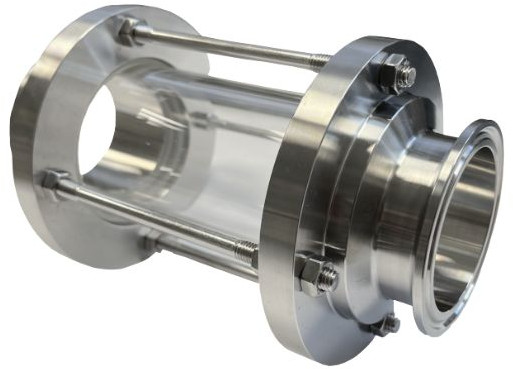

Sight Glass with DIN32676 TriClamp Connection DN25 - Flange 50,5mm

This tubular sight glass with Tri-Clamp DIN32676 DN25 connection provides a clear view of liquid flows and process installations. Made of tempered glass and high-quality stainless steel 316 for maximum durability, hygiene, and corrosion resistance. Ideal for use in food, beverage, pharmaceutical, and process industries.

Features
Connection: Tri-Clamp DIN32676 flange 50.5 mm, DN25
Material: Tempered glass tube and SS316 (1.4404 / AISI 316)
Hygienic design, easy to clean
Suitable for CIP/SIP cleaning
Temperature range: -20°C to +200°C

Applications
Food production, breweries, dairy processing, pharmaceutical processes, chemical and cosmetic industries

Keywords
Tri-Clamp sight glass, SS sight glass DN25, tubular sight glass, DIN32676 sight glass, hygienic process sight glass, stainless steel process connection

FAQ

What is this sight glass used for?
The sight glass provides a clear view of liquid or process flows in hygienic piping or tank systems.

What material is the sight glass made from?
The tube is made of tempered glass, and the fittings and flanges are made of stainless steel 316 (1.4404 / AISI 316).

Is it suitable for CIP/SIP cleaning?
Yes, the hygienic design makes it suitable for Clean-in-Place and Sterilize-in-Place processes.

What pressure and temperature can the sight glass withstand?
The sight glass is suitable for working pressures up to approximately 25 bar and temperatures from -20°C to +200°C.
