| Article number | BIS.15240 |
| EAN | 4062011238007 |
| Thickness | 1.5 mm |
| Width | 245 mm |
| applicable for | For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage. |
| Dimensions | 500x245x1.5 mm |
| gelijk aan a | GGB DX10 |
| Length | 500 mm |
| Maintenance required | Low maintenance |
| Material | Steel / Bronze |
| Material technical | steel copper plated (1.0330) |

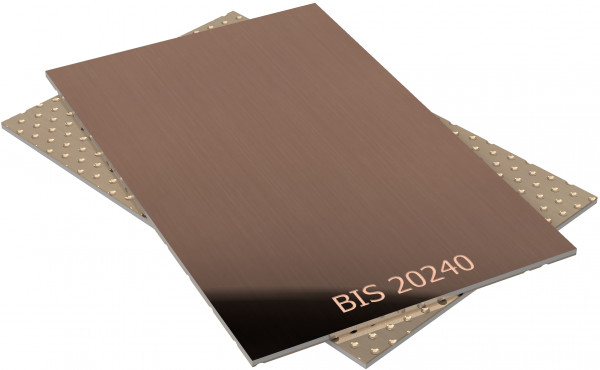

| Model | Slide plate |
| Model 2 | BIV-MET |
| Model Description | With lubrication pockets - Low maintenance |
| Norm | DIN 1494 / ISO 3547 |
| Temperatur range | -40 up to +250 °C |
| Type | PS |
| Dimensions and weight | |
| Length/depth | 50 cm |
| Width | 24,5 cm |
| Height | 0,2 cm |
| Dimension | 50 x 24,5 x 0,2 cm ( L x B x H) |
