| In stock | Yes, 1 pcs |
| Article number | 76148 |
| Size | 3/4" |
| Flange Diameter | 25,4 mm |
| Dimension A | 40,5mm |
| Dimension B | 22,9mm |
| Dimension D | 27,5mm |
| Dimensions | Inch |
| Inner diameter | 15,4 |
| Material | Stainless steel 316 |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4401) |
| Model | Curves |
| Outer diameter | 19,6 mm |
| Pipe Size | 19,6x1,65 |
| Type 2 | Curves |
| Also found under | |
| Tri Clamp Fittings DIN32676 | |

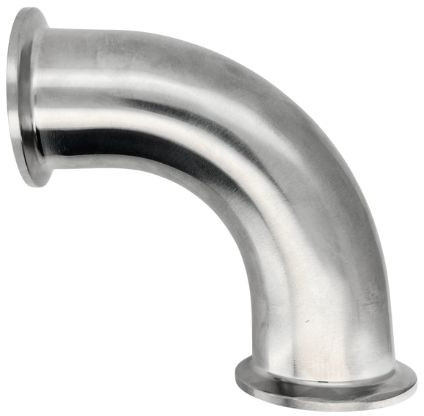

The Tri-Clamp 90° elbow coupling DIN32676 Clamp x Clamp 3/4" x 3/4" provides a hygienic angle connection for piping systems. Made of stainless steel 304, it ensures long-lasting strength and corrosion resistance. Easy to install and clean, it is ideal for applications in food, beverage, and process industries.
Features
Connection: Tri-Clamp DIN32676 Clamp x Clamp 3/4" x 3/4"
Material: SS316
Hygienic design, easy to clean
Suitable for CIP/SIP cleaning
Temperature range: -10°C to +120°C
Applications
Food production, breweries, dairy processing, pharmaceutical processes, chemical and cosmetic industries
Keywords
Tri-Clamp elbow 90 degrees, stainless steel 90° fitting, DIN32676 coupling, hygienic pipe connection, SS process fitting
FAQ
What is this elbow coupling used for?
This elbow provides a hygienic angle connection in piping systems and facilitates directional changes of the medium.
What material is the elbow made from?
Made of stainless steel 316 for maximum corrosion resistance and durability.
Is the elbow suitable for CIP/SIP cleaning?
Yes, the hygienic design is suitable for Clean-in-Place and Sterilize-in-Place processes.
What pressure and temperature can this elbow withstand?
The elbow is suitable for pressures up to 10 bar and temperatures from -10°C to +120°C.
