| Delivery time | Shipped in 5 - 7 - Day(s) |
| Article number | 47604 |
| EAN | 6096018899808 |
| Connection | 13x1.5mm |
| Dimension A | 18mm |
| Dimension B | 10mm |
| Dimension C | 13mm |
| Dimension D | 34mm |
| Dimension E | Ra<0,4µm |
| Dimensions | DIN |
| Flange Diameter | 34 mm |
| For safety clamps? | remove |
| Inner diameter | 10 |
| Length | 18 mm |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4404) |

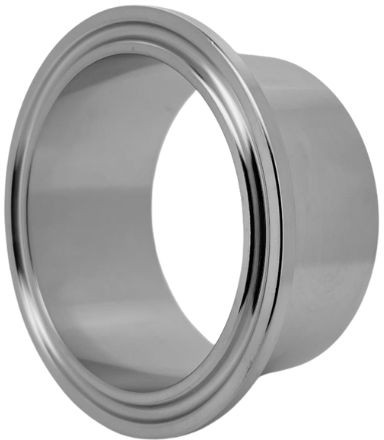

| Model | Welding ferrule |
| Outer diameter | 13 mm |
| Pipe Size | 13x1,5 |
| Roughness | Ra<0.4µm µm |
| Size | DN10 |
| Type 2 | Standard Welding Ferrule |
| Work pressure | 25 |
| Also found under | |
| Tri Clamp Fittings DIN32676 | |
