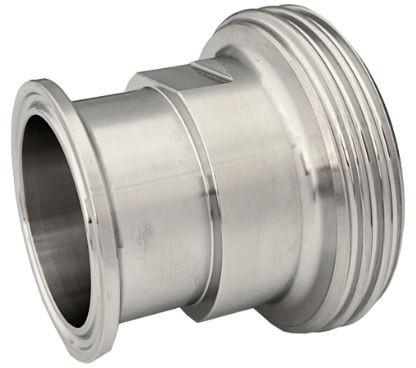

Adapter DIN11851 Male Thread DN20 - TriClamp DIN32676 - Flange 34mm

This adapter provides a reliable connection between a DIN11851 DN20 threaded piece and a Tri-Clamp DIN32676 flange of 34 mm. It is ideal for use in the food, beverage, pharmaceutical, and process industries where hygiene, leak-free connections, and easy installation are essential.

Made of high-quality stainless steel 316 (1.4404 / AISI 316) for optimal corrosion resistance and long service life. The adapter ensures a hygienic, leak-free transition between different piping systems.

Features
Connection: DIN11851 DN20 x Tri-Clamp DIN32676 Flange 34 mm
Material: SS316 (1.4404 / AISI 316)
Easy to install and clean
Suitable for CIP/SIP cleaning
Hygienic design according to DIN and ISO standards

Applications
Dairy and milk processing, breweries, food production, pharmaceutical facilities, cosmetics, and chemical processes

Keywords
DIN11851 to Tri-Clamp adapter, SS316 adapter DN20, milk fitting to Tri-Clamp, DIN32676 adapter, hygienic coupling, stainless steel process connection

FAQ

What is this adapter used for?
The adapter connects a DIN11851 DN20 threaded piece hygienically to a Tri-Clamp DIN32676 flange of 34 mm, for example in tank or process installations.

What material is the adapter made from?
The adapter is made of stainless steel 316 (1.4404 / AISI 316), providing high corrosion resistance and durability.

Is the adapter suitable for CIP/SIP cleaning?
Yes, the hygienic design and smooth surface make it suitable for Clean-in-Place and Sterilize-in-Place processes.

What pressure and temperature can the adapter withstand?
Suitable for working pressures up to approximately 25 bar and temperatures from -20°C to +200°C, depending on the gasket used.

Is the gasket included?
Depending on the supplier; usually, the matching EPDM or PTFE gasket is supplied separately.
