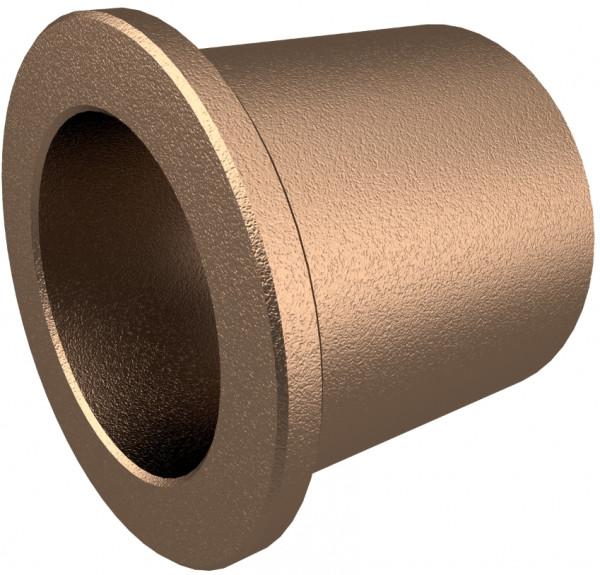

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - /19.05/22.2251.588x12.7 mm

  • Item number: 73610
local_shipping
Delivery time unknown.
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
6.375 mm
7 mm
7.912 mm
8 mm
9 mm
10 mm
12 mm
12.7 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
25 mm
25.4 mm
26 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
45 mm
50 mm
50.8 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
Choose outer diameter
5 mm
6 mm
8 mm
9 mm
10 mm
11 mm
11.176 mm
12 mm
12.7 mm
13 mm
14 mm
15 mm
15.5 mm
16 mm
17 mm
18 mm
19 mm
19.05 mm
20 mm
21 mm
22 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
31.75 mm
32 mm
33 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
46 mm
50 mm
51 mm
55 mm
56 mm
58 mm
60 mm
63.5 mm
65 mm
70 mm
72 mm
75 mm
80 mm
85 mm
95 mm
100 mm
110 mm
115 mm
120 mm
Choose length
2.5 mm
4 mm
4.5 mm
5 mm
6 mm
7 mm
8 mm
10 mm
11 mm
11.5 mm
12 mm
12.7 mm
14 mm
14.5 mm
15 mm
16 mm
17 mm
17.5 mm
18 mm
19 mm
19.05 mm
20 mm
22 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
26.5 mm
28 mm
30 mm
32 mm
35 mm
36 mm
39 mm
40 mm
40.5 mm
45 mm
50 mm
55 mm
60 mm
60.325 mm
63 mm
70 mm
80 mm
93 mm
100 mm
Choose flange diameter
8 mm
9 mm
10 mm
12 mm
13 mm
14 mm
14.29 mm
15 mm
15.875 mm
16 mm
17 mm
18 mm
19 mm
20 mm
22 mm
22.225 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
27 mm
28 mm
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
38 mm
38.1 mm
39 mm
40 mm
44 mm
45 mm
46 mm
48 mm
50 mm
52 mm
53 mm
54 mm
55 mm
57 mm
58 mm
60 mm
62 mm
63 mm
65 mm
67 mm
68 mm
70 mm
73 mm
75 mm
76.2 mm
80 mm
82 mm
83 mm
84 mm
85 mm
95 mm
105 mm
110 mm
120 mm
125 mm
130 mm
Choose
1
1.5
1.52
1.588
1.651
2
2.5
3
3.5
3.175
4
4.5
5
5.5
6
7
8
9.525
10
Choose thickness
1,5 mm
2 mm
2,5 mm
3 mm
3,5 mm
4 mm
4,5 mm
5 mm
6 mm
7 mm
8 mm
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
6.375 mm
7 mm
7.912 mm
8 mm
9 mm
10 mm
12 mm
12.7 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
25 mm
25.4 mm
26 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
45 mm
50 mm
50.8 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
Choose outer diameter
5 mm
6 mm
8 mm
9 mm
10 mm
11 mm
11.176 mm
12 mm
12.7 mm
13 mm
14 mm
15 mm
15.5 mm
16 mm
17 mm
18 mm
19 mm
19.05 mm
20 mm
21 mm
22 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
31.75 mm
32 mm
33 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
46 mm
50 mm
51 mm
55 mm
56 mm
58 mm
60 mm
63.5 mm
65 mm
70 mm
72 mm
75 mm
80 mm
85 mm
95 mm
100 mm
110 mm
115 mm
120 mm
Choose length
2.5 mm
4 mm
4.5 mm
5 mm
6 mm
7 mm
8 mm
10 mm
11 mm
11.5 mm
12 mm
12.7 mm
14 mm
14.5 mm
15 mm
16 mm
17 mm
17.5 mm
18 mm
19 mm
19.05 mm
20 mm
22 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
26.5 mm
28 mm
30 mm
32 mm
35 mm
36 mm
39 mm
40 mm
40.5 mm
45 mm
50 mm
55 mm
60 mm
60.325 mm
63 mm
70 mm
80 mm
93 mm
100 mm
Choose flange diameter
8 mm
9 mm
10 mm
12 mm
13 mm
14 mm
14.29 mm
15 mm
15.875 mm
16 mm
17 mm
18 mm
19 mm
20 mm
22 mm
22.225 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
27 mm
28 mm
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
38 mm
38.1 mm
39 mm
40 mm
44 mm
45 mm
46 mm
48 mm
50 mm
52 mm
53 mm
54 mm
55 mm
57 mm
58 mm
60 mm
62 mm
63 mm
65 mm
67 mm
68 mm
70 mm
73 mm
75 mm
76.2 mm
80 mm
82 mm
83 mm
84 mm
85 mm
95 mm
105 mm
110 mm
120 mm
125 mm
130 mm
Choose
1
1.5
1.52
1.588
1.651
2
2.5
3
3.5
3.175
4
4.5
5
5.5
6
7
8
9.525
10
Choose thickness
1,5 mm
2 mm
2,5 mm
3 mm
3,5 mm
4 mm
4,5 mm
5 mm
6 mm
7 mm
8 mm
Delivery time or price unknown. Request a quote for price and delivery time.
Quick navigation:
Product description
Specifications
Specifications
Article number 73610
EAN 04062011278201
applicable forSuitable for high sliding speed at low load capacity. Series production for high quantities.
As tollerantief7
Diameter HuisH7
Dimensions-/19.05/22.225-1.588x12.7 mm
Dynamic load≤ 5 N/mm² N/mm2
Friction value0,09 up to 0,15 µ
Maintenance requiredMaintenance-free
MaterialSintered bronze
Material technicalBronze (CuSn10/SINT B50)
ModelCylinder liner with flange
Model 2SIB-MET
NormDIN 1850 / ISO 2795
Outer diameter19.05 mm
Rotation speed≤ 6,0 m/s
Static Load≤ 50 N/mm² N/mm2
Temperatur range-20 up to +100 °C
TypeBB
Length12.7 mm
Flange Diameter22.225 mm
Flens dikte1.588
download Download/print specifications PDF
Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - /19.05/22.2251.588x12.7 mm
Product description

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - /19.05/22.2251.588x12.7 mm
SIB-MET is a self-lubricating and maintenance-free plain bearing. Suitable for high speeds at low loads.
Sintered bronze plain bearings | Maintenance-free | Oil-impregnated | Self-lubricating | DIN 1850 / ISO 3009
