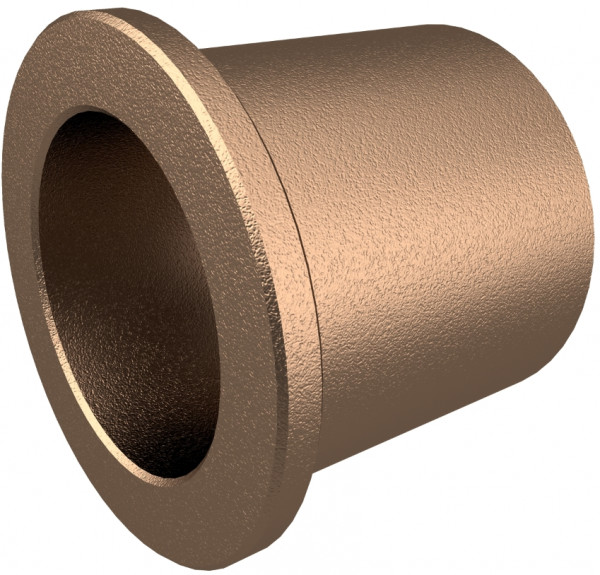

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 22/28/343x15 mm

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 22/28/343x15 mm

  • Item number: SBB.222815B
  • Brand: GLT
local_shipping Shipped in 3 - 4 - Day(s)
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
6.375 mm
7 mm
7.912 mm
8 mm
9 mm
10 mm
12 mm
12.7 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
25 mm
25.4 mm
26 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
45 mm
50 mm
50.8 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
Choose outer diameter
5 mm
6 mm
8 mm
9 mm
10 mm
11 mm
11.176 mm
12 mm
12.7 mm
13 mm
14 mm
15 mm
15.5 mm
16 mm
17 mm
18 mm
19 mm
19.05 mm
20 mm
21 mm
22 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
31.75 mm
32 mm
33 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
46 mm
50 mm
51 mm
55 mm
56 mm
58 mm
60 mm
63.5 mm
65 mm
70 mm
72 mm
75 mm
80 mm
85 mm
95 mm
100 mm
110 mm
115 mm
120 mm
Choose length
2.5 mm
4 mm
4.5 mm
5 mm
6 mm
7 mm
8 mm
10 mm
11 mm
11.5 mm
12 mm
12.7 mm
14 mm
14.5 mm
15 mm
16 mm
17 mm
17.5 mm
18 mm
19 mm
19.05 mm
20 mm
22 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
26.5 mm
28 mm
30 mm
32 mm
35 mm
36 mm
39 mm
40 mm
40.5 mm
45 mm
50 mm
55 mm
60 mm
60.325 mm
63 mm
70 mm
80 mm
93 mm
100 mm
Choose flange diameter
8 mm
9 mm
10 mm
12 mm
13 mm
14 mm
14.29 mm
15 mm
15.875 mm
16 mm
17 mm
18 mm
19 mm
20 mm
22 mm
22.225 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
27 mm
28 mm
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
38 mm
38.1 mm
39 mm
40 mm
44 mm
45 mm
46 mm
48 mm
50 mm
52 mm
53 mm
54 mm
55 mm
57 mm
58 mm
60 mm
62 mm
63 mm
65 mm
67 mm
68 mm
70 mm
73 mm
75 mm
76.2 mm
80 mm
82 mm
83 mm
84 mm
85 mm
95 mm
105 mm
110 mm
120 mm
125 mm
130 mm
Choose
1
1.5
1.52
1.588
1.651
2
2.5
3
3.5
3.175
4
4.5
5
5.5
6
7
8
9.525
10
Choose thickness
1,5 mm
2 mm
2,5 mm
3 mm
3,5 mm
4 mm
4,5 mm
5 mm
6 mm
7 mm
8 mm
€ 44,65 per 5 piece(s) incl. VAT
€ 44,65 excl. VAT
€ 8,93 per 1 piece(s)
piece(s)
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
6.375 mm
7 mm
7.912 mm
8 mm
9 mm
10 mm
12 mm
12.7 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
25 mm
25.4 mm
26 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
45 mm
50 mm
50.8 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
Choose outer diameter
5 mm
6 mm
8 mm
9 mm
10 mm
11 mm
11.176 mm
12 mm
12.7 mm
13 mm
14 mm
15 mm
15.5 mm
16 mm
17 mm
18 mm
19 mm
19.05 mm
20 mm
21 mm
22 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
31.75 mm
32 mm
33 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
46 mm
50 mm
51 mm
55 mm
56 mm
58 mm
60 mm
63.5 mm
65 mm
70 mm
72 mm
75 mm
80 mm
85 mm
95 mm
100 mm
110 mm
115 mm
120 mm
Choose length
2.5 mm
4 mm
4.5 mm
5 mm
6 mm
7 mm
8 mm
10 mm
11 mm
11.5 mm
12 mm
12.7 mm
14 mm
14.5 mm
15 mm
16 mm
17 mm
17.5 mm
18 mm
19 mm
19.05 mm
20 mm
22 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
26.5 mm
28 mm
30 mm
32 mm
35 mm
36 mm
39 mm
40 mm
40.5 mm
45 mm
50 mm
55 mm
60 mm
60.325 mm
63 mm
70 mm
80 mm
93 mm
100 mm
Choose flange diameter
8 mm
9 mm
10 mm
12 mm
13 mm
14 mm
14.29 mm
15 mm
15.875 mm
16 mm
17 mm
18 mm
19 mm
20 mm
22 mm
22.225 mm
23 mm
24 mm
25 mm
25.4 mm
26 mm
27 mm
28 mm
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
38 mm
38.1 mm
39 mm
40 mm
44 mm
45 mm
46 mm
48 mm
50 mm
52 mm
53 mm
54 mm
55 mm
57 mm
58 mm
60 mm
62 mm
63 mm
65 mm
67 mm
68 mm
70 mm
73 mm
75 mm
76.2 mm
80 mm
82 mm
83 mm
84 mm
85 mm
95 mm
105 mm
110 mm
120 mm
125 mm
130 mm
Choose
1
1.5
1.52
1.588
1.651
2
2.5
3
3.5
3.175
4
4.5
5
5.5
6
7
8
9.525
10
Choose thickness
1,5 mm
2 mm
2,5 mm
3 mm
3,5 mm
4 mm
4,5 mm
5 mm
6 mm
7 mm
8 mm
€ 44,65 per 5 piece(s) incl. VAT
€ 44,65 excl. VAT
€ 8,93 per 1 piece(s)
piece(s)
check25 years of experience
check Customer review 9,2/10
More than 10 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • According to DIN 1859 / ISO 2795
  • No maintenance
  • Self-lubricating
  • Oil-Soaked
  • Suitable for high speeds
  • Relatively low load
Specifications
In stock Yes, 202 pcs
Article number SBB.222815B
EAN 04062011148399
applicable forSuitable for high sliding speed at low load capacity. Series production for high quantities.
As tollerantief7
Diameter HuisH7
Dimensions22/28/34-3x15 mm
Dynamic load≤ 5 N/mm² N/mm2
Friction value0,09 up to 0,15 µ
Inner diameter22 mm
Maintenance requiredMaintenance-free
MaterialSintered bronze
Material technicalBronze (CuSn10/SINT B50)
ModelCylinder liner with flange
Model 2SIB-MET
NormDIN 1850 / ISO 2795
Outer diameter28 mm
Rotation speed≤ 6,0 m/s
Static Load≤ 50 N/mm² N/mm2
Temperatur range-20 up to +100 °C
TypeBB
Length15 mm
Flange Diameter34 mm
Flens dikte3
Thickness3 mm
Dimensions and weight
Length/depth3,4 cm
Width3,4 cm
Height1,5 cm
Dimension3,4 x 3,4 x 1,5 cm ( L x B x H)
Packaging dimensions
Length3,4 cm
Width3,4 cm
Height1,5 cm
Weight0 kg
Also found under
Sliding Bearings
download Download/print specifications PDF
Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 22/28/343x15 mm
Product description

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 22/28/343x15 mm
SIB-MET is a self-lubricating and maintenance-free plain bearing. Suitable for high speeds at low loads.
Sintered bronze plain bearings | Maintenance-free | Oil-impregnated | Self-lubricating | DIN 1850 / ISO 2853
