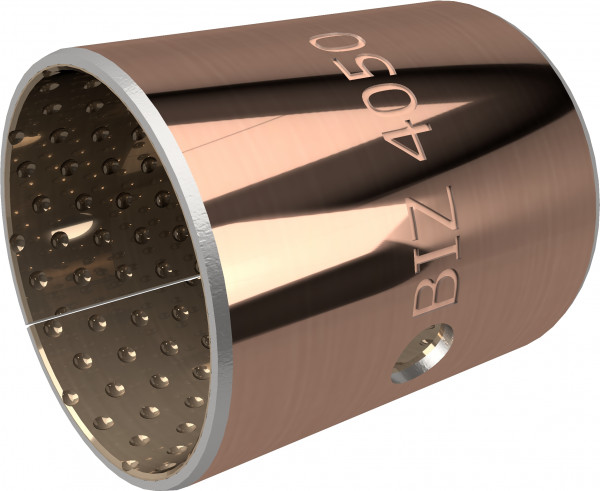

Cylindrical Bushing - Plain Bearing - BIV-MET - Steel/Bronze - 90/95x80 mm

Cylindrical Bushing - Plain Bearing - BIV-MET - Steel/Bronze - 90/95x80 mm

  • Item number: BIZ.9080
  • Brand: GLT
local_shipping Shipped in 3 - 4 - Day(s)
Choose inner diameter
3 mm
8 mm
10 mm
12 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
24 mm
25 mm
26 mm
28 mm
30 mm
32 mm
34 mm
35 mm
38 mm
40 mm
42 mm
45 mm
50 mm
55 mm
60 mm
63 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
170 mm
190 mm
220 mm
225 mm
235 mm
260 mm
270 mm
300 mm
515 mm
Choose outer diameter
5 mm
10 mm
12 mm
14 mm
16 mm
17 mm
18 mm
20 mm
22 mm
23 mm
25 mm
26 mm
27 mm
28 mm
30 mm
31 mm
32 mm
34 mm
36 mm
38 mm
39 mm
42 mm
44 mm
46 mm
50 mm
55 mm
60 mm
65 mm
68 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
165 mm
175 mm
195 mm
225 mm
230 mm
240 mm
265 mm
275 mm
305 mm
520 mm
Choose length
3 mm
8 mm
10 mm
12 mm
15 mm
16 mm
18 mm
20 mm
24 mm
25 mm
28 mm
30 mm
33 mm
34 mm
35 mm
37 mm
38 mm
40 mm
42 mm
45 mm
50 mm
55 mm
56 mm
60 mm
63 mm
65 mm
70 mm
75 mm
80 mm
85 mm
87.5 mm
90 mm
95 mm
96 mm
100 mm
110 mm
115 mm
120 mm
125 mm
130 mm
140 mm
150 mm
255 mm
€ 31,22 per piece(s) incl. VAT
€ 25,80 excl. VAT
piece(s)
Choose inner diameter
3 mm
8 mm
10 mm
12 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
24 mm
25 mm
26 mm
28 mm
30 mm
32 mm
34 mm
35 mm
38 mm
40 mm
42 mm
45 mm
50 mm
55 mm
60 mm
63 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
170 mm
190 mm
220 mm
225 mm
235 mm
260 mm
270 mm
300 mm
515 mm
Choose outer diameter
5 mm
10 mm
12 mm
14 mm
16 mm
17 mm
18 mm
20 mm
22 mm
23 mm
25 mm
26 mm
27 mm
28 mm
30 mm
31 mm
32 mm
34 mm
36 mm
38 mm
39 mm
42 mm
44 mm
46 mm
50 mm
55 mm
60 mm
65 mm
68 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
165 mm
175 mm
195 mm
225 mm
230 mm
240 mm
265 mm
275 mm
305 mm
520 mm
Choose length
3 mm
8 mm
10 mm
12 mm
15 mm
16 mm
18 mm
20 mm
24 mm
25 mm
28 mm
30 mm
33 mm
34 mm
35 mm
37 mm
38 mm
40 mm
42 mm
45 mm
50 mm
55 mm
56 mm
60 mm
63 mm
65 mm
70 mm
75 mm
80 mm
85 mm
87.5 mm
90 mm
95 mm
96 mm
100 mm
110 mm
115 mm
120 mm
125 mm
130 mm
140 mm
150 mm
255 mm
€ 31,22 per piece(s) incl. VAT
€ 25,80 excl. VAT
piece(s)
check25 years of experience
check Customer review 9,2/10
More than 10 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • Bronze with lubricant depots
  • Low maintenance
  • For high loads and oscillating movements
  • Longlasting lubrication due to depots
Specifications
In stock Yes, 31 pcs
Article number BIZ.9080
EAN 04062011003780
applicable forFor high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
Dimensions90/95x80 mm
Dynamic load≤ 140 N/mm² N/mm2
Friction value0,04 up to 0,12 µ
gelijk aan aGGB DX10
Inner diameter90 mm
Maintenance requiredOnderhoudsarm
MaterialSS 305
Material technicalsteel copper plated (1.0330)
ModelCylinder liner
Model 2BIV-MET
Model DescriptionMet smeer-pockets - Onderhoudsarm
NormDIN 1494 / ISO 3547
Outer diameter95 mm
Rotation speed≤ 2,5 m/s
Static Load≤ 250 N/mm² N/mm2
Temperatur range-40 up to +250 °C
TypeZB
Length80 mm
Dimensions and weight
Length/depth8 cm
Width9,5 cm
Height9,5 cm
Dimension8 x 9,5 x 9,5 cm ( L x B x H)
Packaging dimensions
Length8 cm
Width9,5 cm
Height9,5 cm
Weight0 kg
Also found under
Sliding Bearings
download Download/print specifications PDF
Cylindrical Bushing - Plain Bearing - BIV-MET - Steel/Bronze - 90/95x80 mm
Product description

De Cylindrical Bushing - Plain Bearing - BIV-MET - Steel/Bronze - 90/95x80 mm


BIV-MET is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. Due to the lubricant depots, the relubrication intervals are greatly reduced! For high loads and oscillating movements as well as for rough operation and temperature load.
Wrapped composite sliding bearing with lubrication pockets/ copper-plated steel & CuSn10Pb10 | Low-maintenance | DIN 1494 / ISO 3547
