| Article number | 65812 |
| EAN | 04062011004435 |
| applicable for | BRO-LUB is a maintenance-free bronze plain bearing with solid lubricant depots. Initial lubrication is necessary! High load capacity with low wear, very suitable for low sliding speeds and oscillating movements. |
| As tollerantie | f7 |
| Diameter Huis | H7 |
| Dimensions | 25/28/35-1.5x21.5 mm |
| Dynamic load | ≤ 40 N/mm² N/mm2 |
| Friction value | 0,03 up to 0,25 µ |
| Inner diameter | 25 mm |
| Material | Bronze |
| Material technical | Bronze (CuSn8P) |

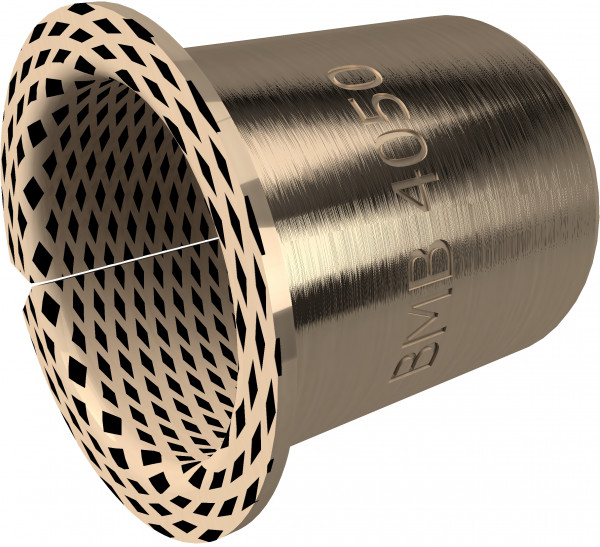

| Model | Cylinder liner with flange |
| Model 2 | BRO-LUB |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 28 mm |
| Rotation speed | ≤ 2,5 m/s |
| Static Load | ≤ 120 N/mm² N/mm2 |
| Temperatur range | -100 up to +200 °C |
| Type | BB |
| Length | 21.5 mm |
| Flange Diameter | 35 mm |
| Flens dikte | 1.5 |
