| Article number | 65809 |
| EAN | 04062011268639 |
| applicable for | BRO-LUB is a maintenance-free bronze plain bearing with solid lubricant depots. Initial lubrication is necessary! High load capacity with low wear, very suitable for low sliding speeds and oscillating movements. |
| Dimensions | 180/185/215-2.5x120 mm |
| Dynamic load | ≤ 40 N/mm² N/mm2 |
| Friction value | 0,03 up to 0,25 µ |
| Housing diameter | H7 |
| Inner diameter | 180 mm |
| Material | Bronze |
| Material technical | Bronze (CuSn8P) |

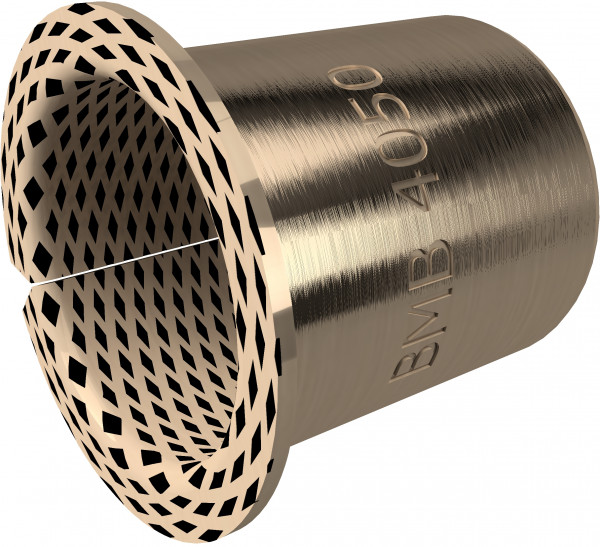

| Model | Cylinder liner with flange |
| Model 2 | BRO-LUB |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 185 mm |
| Rotation speed | ≤ 2,5 m/s |
| Shaft tolerance | f7 |
| Static Load | ≤ 120 N/mm² N/mm2 |
| Temperatur range | -100 up to +200 °C |
| Type | BB |
| Length | 120 mm |
| Flange Diameter | 215 mm |
| Flange thickness | 2.5 |
