| Article number | TFB_P.1817 |
| EAN | 04062011268059 |
| applicable for | Excellent sliding- and wear behaviour, for all types of movement, high load capacity, all-round adaptable. |
| As tollerantie | f7 |
| Diameter Huis | H7 |
| Dimensions | 18/20/26-1x17 mm |
| Dynamic load | ≤ 140 N/mm² N/mm2 |
| Friction value | 0,02 up to 0,18 µ |
| Inner diameter | 18 mm |
| Maintenance required | Maintenance-free |
| Materiaal Glij oppervlak | PTFE + fillers |
| Material | Steel / PTFE |
| Material technical | Steel tin-plated (1.0330) + Sintered Bronze + PTFE |

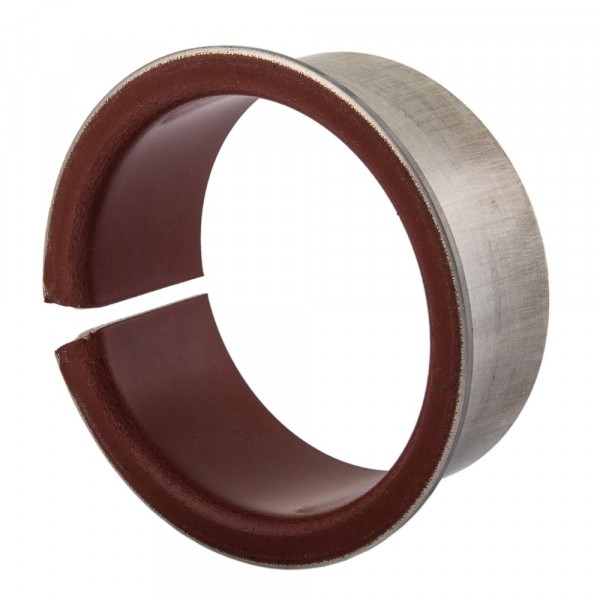

| Model | Cylinder liner with flange |
| Model 2 | TEF-MET/P |
| Model Description | Bearing bush - Plain bearing |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 20 mm |
| Rotation speed | ≤ 2,5 m/s |
| Static Load | ≤ 250 N/mm² N/mm2 |
| Temperatur range | – 200 to + 280 °C |
| Type | BB |
| Length | 17 mm |
| Flange Diameter | 26 mm |
| Flens dikte | 1 |
| Dimensions and weight | |
| Length/depth | 1,7 cm |
| Width | 2 cm |
| Height | 2 cm |
| Dimension | 1,7 x 2 x 2 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 1,7 cm |
| Width | 2 cm |
| Height | 2 cm |
| Weight | 0 kg |
