Pros and cons
  • Especially designed for Pneumatic Cylinders
  • Incl Counternut DIN439
  • Maintenance Free
  • DIN ISO 12 240-4-Series K, Form F
  • Sliding Surface: Steel/PTFE

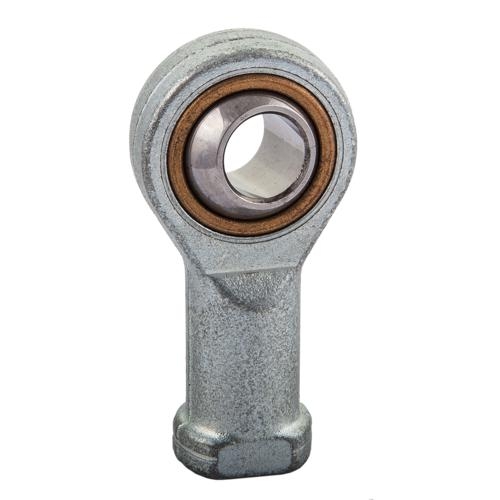

Rod End SIKP10C / SGS-M10 - Bore 10MM x M10x1,25 - BSP/F

  • Article number: SIKP10C - SGS-M10
  • EAN-code:
  • Brand: NexaParts
local_shipping Shipped in 5 - 7 - Day(s)
Delivery time and price unknown. Request a quote for price and delivery time.
Pros and cons
  • Especially designed for Pneumatic Cylinders
  • Incl Counternut DIN439
  • Maintenance Free
  • DIN ISO 12 240-4-Series K, Form F
  • Sliding Surface: Steel/PTFE
Specifications
Article number SIKP10C - SGS-M10
ColorMetaal
MaterialST 52-3 Tinted
ModelStangkop onderhoudsvrij
B (Inner ring width)14 mm
Basic load ratings dynamic14.5 kN
Basic load ratings statisch23.4 kN
C1 max (Rod end width)10.5 mm
CN Radial internal clearance0,010 - 0,040 mm
d (Bearing bore)10 mm
d2 max (Rod end diameter)28 mm
h (Shank length)43 mm
L3 min (Thread length)20 mm
Maintenance NippelNo
Maintenance requiredNo
NormDIN ISO 12 240-4-series K, Form F
Thread sizeM10x1,25
Tilting angle13 α° ≈
Total height Rod end (L, L2, L4)57
Dimensions and weight
Weight0.11 Kg
Also found under
Rod Ends | Rod Ends with Thread
download Download/print specifications PDF
Product description
Rod End SIKP10C / SGS-M10 - Bore 10MM x M10x1,25 - BSP/F
Stangkop SIKP10C - GIKPR10PW - GIPFR10PW - SIKB10F/VZ019 - SGS-M.. - Gat 10MM xm10x1,25 - Inwendig schroefdraad
Delivery time and price unknown. Request a quote for price and delivery time.
