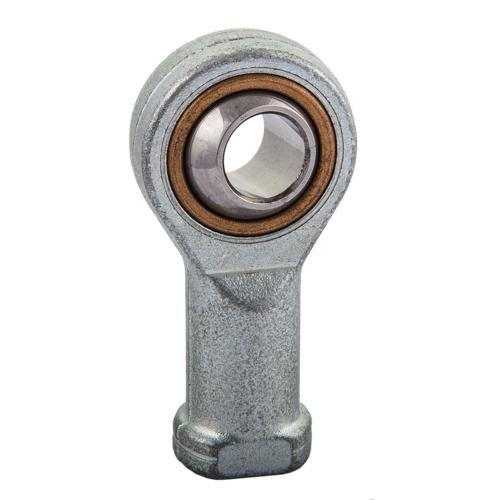

Rod End SIKP35C / SGS-M35 - Bore 35MM x M36x2 - BSP/F

  • Article number: 1829
  • EAN-code:
  • Brand: NexaParts
local_shipping Shipped in 5 - 7 - Day(s)
Delivery time and price unknown. Request a quote for price and delivery time.
Pros and cons
  • Especially designed for Pneumatic Cylinders
  • Incl Counternut DIN444
  • Maintenance Free
  • DIN ISO 12 240-4-Series K, Form F
  • Sliding Surface: Steel/PTFE
Specifications
Article number SIKP35C - SGS-M35
ColorMetaal
MaterialST 52-3 Tinted
ModelStangkop onderhoudsvrij
B (Inner ring width)43 mm
Basic load ratings dynamic100 kN
Basic load ratings statisch205.7 kN
C1 max (Rod end width)28 mm
CN Radial internal clearance0,012 - 0,050 mm
d (Bearing bore)35 mm
d2 max (Rod end diameter)80 mm
h (Shank length)125 mm
L3 min (Thread length)56 mm
Maintenance NippelNo
Maintenance requiredNo
NormDIN ISO 12 240-4-series K, Form F
Thread sizeM36x2
Tilting angle15 α° ≈
Total height Rod end (L, L2, L4)165
Dimensions and weight
Weight1.60 Kg
Also found under
Rod Ends | Rod Ends Screwing
download Download/print specifications PDF
Product description
Rod End SIKP35C / SGS-M35 - Bore 35MM x M36x2 - BSP/F
Stangkop SIKP35C - GIKPR35PW - GIPFR35PW - SIKB35F/VZ019 - SGS-M.. - Gat 35MM xm36x2 - Inwendig schroefdraad
Delivery time and price unknown. Request a quote for price and delivery time.
