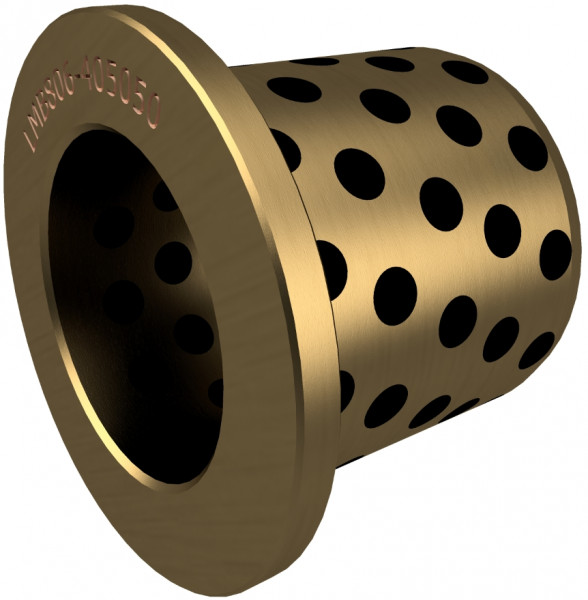

Sliding Bearing Flanged - Cylindrical Bushing - LUB-MET - Bronze - PTFE - 110/130/15510x90 mm

  • Article number: 71275
  • Brand: GLT
Choose inner diameter
6
8
10
12
13
14
15
16
18
19
20
25
26
28
30
32
35
40
42
45
48
50
55
60
62
63
65
70
75
80
82
85
90
95
100
105
110
120
130
130.2
150
160
200
210.8
232
250.6
340
390
400
430
450
Choose outer diameter
10
12
13
14
17
18
19
20
21
22
24
25
26
28
29
30
31
32
33
35
38
40
42
45
50
51
52
54
55
56
58
60
62
63
65
68
70
74
75
80
85
88
89
90
95
100
102
105
110
115
120
130
140
150
155
160
170
175
180
220
230
250
280
370
410
420
480
Choose length
10
10.5
12
13
15
16
17
18
19
20
21.5
22.5
23
24
25
26
27
29
30
31
32
35
38
40
43
45
46
48
50
54
55
57
58
60
65
68
70
72
76
80
86
90
95
100
110
112
115
120
124
128
135
160
170
200
290
315
395
400
Choose flange diameter
16
20
22
23
24
25
26
27
28
29
30
32
35
36
37
38
40
44
45
46
47
48
50
55
57
58
60
62
65
67
68
70
75
80
83
85
90
95
100
105
110
120
120.5
125
130
135
138
140
150
155
160
170
180
185
190
192
200
210
250
252
260
280
310
400
440
460
510
570
Choose flange thickness
1
1.5
2
2.5
3
4
4.5
5
5.5
6
7
7.5
8
9
10
14
15
16
17
20
Choose inner diameter
6
8
10
12
13
14
15
16
18
19
20
25
26
28
30
32
35
40
42
45
48
50
55
60
62
63
65
70
75
80
82
85
90
95
100
105
110
120
130
130.2
150
160
200
210.8
232
250.6
340
390
400
430
450
Choose outer diameter
10
12
13
14
17
18
19
20
21
22
24
25
26
28
29
30
31
32
33
35
38
40
42
45
50
51
52
54
55
56
58
60
62
63
65
68
70
74
75
80
85
88
89
90
95
100
102
105
110
115
120
130
140
150
155
160
170
175
180
220
230
250
280
370
410
420
480
Choose length
10
10.5
12
13
15
16
17
18
19
20
21.5
22.5
23
24
25
26
27
29
30
31
32
35
38
40
43
45
46
48
50
54
55
57
58
60
65
68
70
72
76
80
86
90
95
100
110
112
115
120
124
128
135
160
170
200
290
315
395
400
Choose flange diameter
16
20
22
23
24
25
26
27
28
29
30
32
35
36
37
38
40
44
45
46
47
48
50
55
57
58
60
62
65
67
68
70
75
80
83
85
90
95
100
105
110
120
120.5
125
130
135
138
140
150
155
160
170
180
185
190
192
200
210
250
252
260
280
310
400
440
460
510
570
Choose flange thickness
1
1.5
2
2.5
3
4
4.5
5
5.5
6
7
7.5
8
9
10
14
15
16
17
20
Delivery time or price unknown. Request a quote for price and delivery time.
Quick navigation:
Product description
Specifications
Specifications
Article number 71275
EAN 04062011108935
applicable forFor high loads, impact loads, oscillating movements, wear-resistant, insensitive to dirt, corrosion-resistant, long service life.
Dimensions110/130/155-10x90 mm
Dynamic load≤ 100 N/mm² N/mm2
Friction value0,03 up to 0,20 µ
Housing diameterH7
Inner diameter110 mm
Maintenance requiredmaintenance free
MaterialBronze - PTFE
Material technicalCuZn25Al5
ModelCylinder liner with flange
Model 2LUB-MET
Outer diameter130 mm
Rotation speed≤ 1,0 m/s
Shaft tolerancef7
Static Load≤ 150 N/mm² N/mm2
Temperatur range-100 up to +300 °C
TypeBB
Length90 mm
Flange Diameter155 mm
Flange thickness10
Sliding Bearing Flanged - Cylindrical Bushing - LUB-MET - Bronze - PTFE - 110/130/15510x90 mm
Product description

Sliding Bearing Flanged - Cylindrical Bushing - LUB-MET - Bronze - PTFE - 110/130/15510x90 mm


LUB-MET is a maintenance-free plain bearing. However, initial lubrication is necessary. For high loads, shock loads, wear-resistant, insensitive to dirt, corrosion-resistant, long service life.
Solid bronze plain bearing | Maintenance-free | With solid lubricant deposits in the sliding surface | Version available with water-resistant solid lubricant
Delivery time & price unknown. Request a quote for price and delivery time.
