| Article number | 47705 |
| EAN | 6096021297295 |
| Dimension A | 28,6mm |
| Dimension B | 21,3mm |
| Dimension C | 18,1mm |
| Dimension D | 34mm |
| Dimensions | DIN |
| Flange Diameter | 34 mm |
| For safety clamps? | remove |
| Inner diameter | 18.1 |
| Length | 28.6 mm |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4404) |

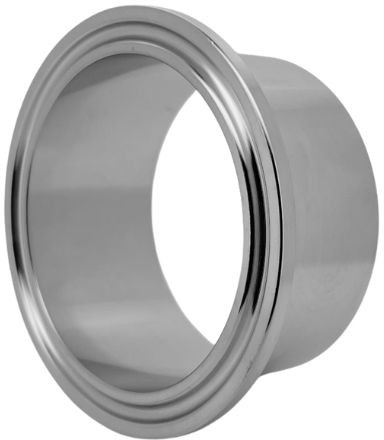

| Model | Welding ferrule |
| Outer diameter | 21.3 mm |
| Pipe Size | 21,3x1,6 |
| Roughness | Ra<0.8µm µm |
| Size | DN15 |
| Type 2 | Welding ferrule long |
| Work pressure | 25 |
| Also found under | |
| Tri Clamp Fittings DIN32676 | |
