| Delivery time | Shipped in 3 - 4 - Day(s) |
| Article number | 56527 |
| EAN | 4064907013859 |
| Dimension B | 23 |
| Dimension C | 20 |
| Dimension D | 34 |
| Flange Diameter | 34 mm |
| Inner diameter | 20 |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4404) |
| Model | Welding ferrule |
| Outer diameter | 23 mm |
| Pipe Size | 23x1,5 |
| Type 2 | Welding ferrule bend |
| Also found under | |
| Tri Clamp Fittings DIN32676 | Tri Clamp Bends | |

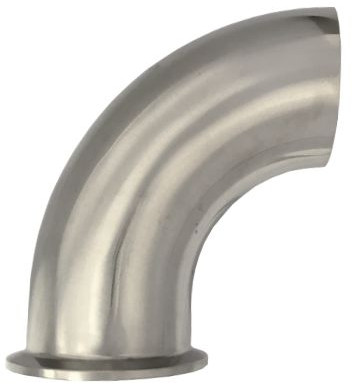

The Tri-Clamp 90° weld ferrule elbow DIN32676 DN20 23x20mm with 34mm flange provides a hygienic angle connection in piping systems. Made of stainless steel, it ensures long-lasting strength and corrosion resistance. Easy to install and clean, it is ideal for food, beverage, and process industry applications.
Features
Connection: Tri-Clamp DIN32676 weld ferrule elbow 90° DN20 23x20mm, 34mm flange
Material: SS316
Hygienic design, easy to clean
Suitable for CIP/SIP cleaning
Temperature range: -10°C to +120°C
Applications
Food production, breweries, dairy processing, pharmaceutical processes, chemical and cosmetic industries
Keywords
Tri-Clamp weld ferrule elbow 90 degrees, stainless steel 90° fitting, DIN32676 coupling, hygienic pipe connection, SS process fitting
FAQ
What is this weld ferrule elbow used for?
This elbow provides a hygienic 90° connection in piping systems and facilitates directional changes of the medium.
What material is the elbow made from?
Made of stainless steel 316 for maximum corrosion resistance and durability.
Is the elbow suitable for CIP/SIP cleaning?
Yes, the hygienic design is suitable for Clean-in-Place and Sterilize-in-Place processes.
What pressure and temperature can this elbow withstand?
The elbow is suitable for pressures up to 10 bar and temperatures from -10°C to +120°C.
