| Delivery time | Shipped in 3 - 5 - Day(s) |
| Article number | 61821 |
| EAN | 6096001539575 |
| B (Inner ring width) | 16 mm |
| C1 max (Rod end width) | 12 mm |
| d (Bearing bore) | 12 mm |
| d2 max (Rod end diameter) | 32 mm |

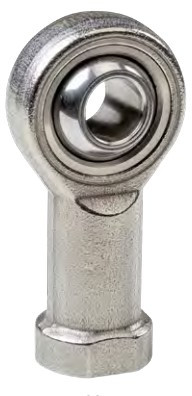

| Dimensions | SSI 12 M12x1,75 RVS A2 (304) |
| h1 (Shank length) | 50 mm |
| L3 min (Thread length) | 22 mm |
| Material | stainless steel |
| Model | Rod end maintenance free |
| Thread size | M12 x 1,75 |
| Tilting angle | 13 α° ≈ |
| Total height Rod end (L, L2, L4) | 66 |
