| Delivery time | Shipped in 3 - 5 - Day(s) |
| Article number | 61818 |
| EAN | 6096001917915 |
| B (Inner ring width) | 12 mm |
| C1 max (Rod end width) | 9 mm |
| d (Bearing bore) | 8 mm |
| d2 max (Rod end diameter) | 24 mm |

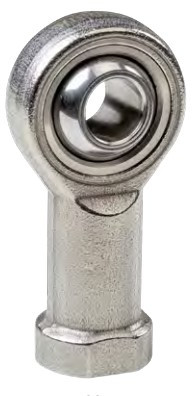

| Dimensions | SSI 8 M8x1,25 RVS A2 (304) |
| h1 (Shank length) | 36 mm |
| L3 min (Thread length) | 16 mm |
| Material | stainless steel |
| Model | Rod end maintenance free |
| Thread size | M8 x 1,25 |
| Tilting angle | 14 α° ≈ |
| Total height Rod end (L, L2, L4) | 48 |
