| Delivery time | Shipped in 3 - 5 - Day(s) |
| Article number | 61824 |
| EAN | 6096012737779 |
| B (Inner ring width) | 25 mm |
| C1 max (Rod end width) | 18 mm |
| d (Bearing bore) | 20 mm |
| d2 max (Rod end diameter) | 50 mm |

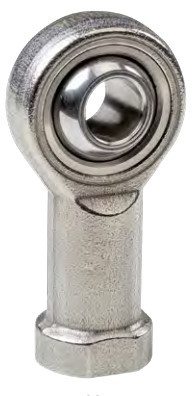

| Dimensions | SSI 20 M20x1,5 (MF) RVS A2 (304) |
| h1 (Shank length) | 77 mm |
| L3 min (Thread length) | 33 mm |
| Material | stainless steel |
| Model | Rod end maintenance free |
| Thread size | M20 x 1,5 |
| Tilting angle | 14 α° ≈ |
| Total height Rod end (L, L2, L4) | 102 |
