| Article number | TFB_P.1212 |
| EAN | 04062011173957 |
| applicable for | Excellent sliding- and wear behaviour, for all types of movement, high load capacity, all-round adaptable. |
| Dimensions | 12/14/20-1x12 mm |
| Dynamic load | ≤ 140 N/mm² N/mm2 |
| Friction value | 0,02 up to 0,18 µ |
| Housing diameter | H7 |
| Inner diameter | 12 mm |
| Maintenance required | Maintenance-free |
| Material | Steel / PTFE |
| Material technical | Steel tin-plated (1.0330) + Sintered Bronze + PTFE |

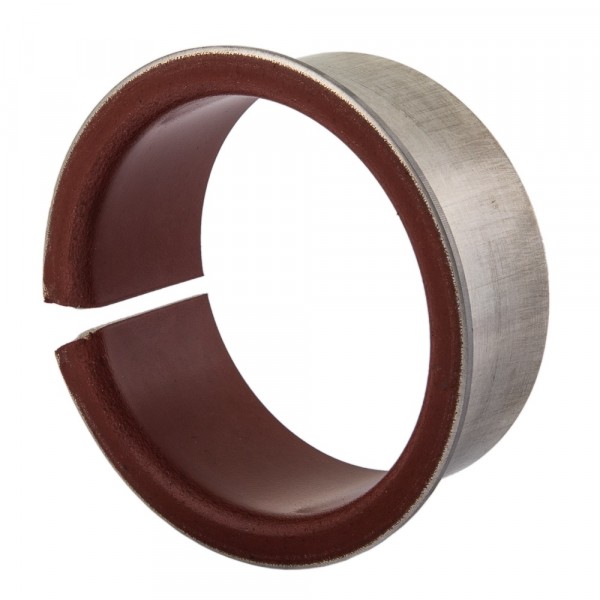

| Model | Cylinder liner with flange |
| Model 2 | TEF-MET/P |
| Model Description | Bearing bush - Plain bearing |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 14 mm |
| Rotation speed | ≤ 2,5 m/s |
| Shaft tolerance | f7 |
| Sliding surface material | PTFE + fillers |
| Static Load | ≤ 250 N/mm² N/mm2 |
| Temperatur range | – 200 to + 280 °C |
| Type | BB |
| Length | 12 mm |
| Flange Diameter | 20 mm |
| Flange thickness | 1 |
| Dimensions and weight | |
| Length/depth | 1,2 cm |
| Width | 1,4 cm |
| Height | 1,4 cm |
| Dimension | 1,2 x 1,4 x 1,4 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 1,2 cm |
| Width | 1,4 cm |
| Height | 1,4 cm |
| Weight | 0 kg |
