| Delivery time | Shipped in 13 - 15 - Day(s) |
| Article number | 77902 |
| EAN | 6096035187124 |
| Barst pressure | 160 bar |
| Connection | Incl 2x DIN 32676 - Tri Clamp (Flens 64mm) |
| Diameter Hose | 38.1 |
| Dimensions | 5m |
| Inner diameter | 38.1 mm |
| Inner surface | PTFE (Gegolfd) |
| Material | PTFE x AISI 304 met Silicone buitenlaag |
| Minimum bend radius | 150 mm |
| Model | Levensmiddelenslang PTFE-RVS-Silicone |
| Model 2 | Completely assembled hose |
| Norm | FDA 21 CFR 177.1550, EU 10/2011, USP CLASS VI |
| Outer diameter | 55.2 mm |
| Outer surface | Silicone |
| Quality Mark | FDA 21 CFR 177.1550, EU 10/2011, USP CLASS VI |
| Size | Tri Clamp Flenzen |
| Size | DN38 |
| Temperatur range | -54°C/+180°C |
| Type 2 | High Temp (260ºC) - PTFE Core - Flared - 40bar |
| Vacuüm | 0,9 |
| Wall Thickness | 8.5 mm |
| Work pressure | 40 bar |
| Length | 5m |

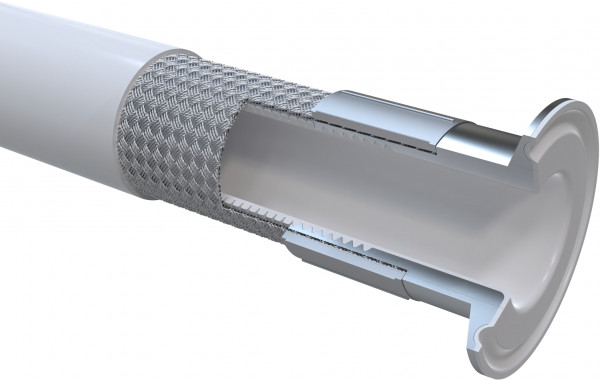

This fully assembled hose system combines a smooth PTFE inner bore with an AISI 304 stainless steel braided core and a white silicone outer cover. Supplied as 5m length, ideal for longer installation distances and flexible process connections. Both ends are fitted with professionally assembled Tri-Clamp flanges — ready for immediate use on receipt.
The hose has a nominal diameter of DN38 (38,1 mm) and is designed for medium to high flow volumes. Working pressure is 40 bar with a burst pressure of 160 bar. The temperature range of −54°C to +180°C makes the hose suitable for both cryogenic and high-temperature process applications.
PTFE inner bore (smooth bore) – Fully smooth polytetrafluoroethylene with minimal flow resistance. Chemically inert to virtually all aggressive media, acids, bases and solvents.
AISI 304 braiding – Robust braided core providing mechanical reinforcement and pressure resistance up to 40 bar working pressure.
White silicone cover – Pharmaceutical-grade, protects the braid and provides an easy-to-clean outer surface. White colour for HACCP visibility.
Tri-Clamp flanges (pre-assembled) – To DIN 32676 / ISO 2852, size 1½ inch (DN38), compatible with all common triclamp systems.
Certified to FDA 21 CFR 177.1550, EU 10/2011 and USP Class VI.
The flanges on this hose (DN38 / 38,1 mm) are manufactured in size 1½ inch (DN38) to DIN 32676.
Yes. The PTFE inner bore and silicone cover make the hose fully resistant to in-place cleaning and sterilisation procedures up to +180°C.
