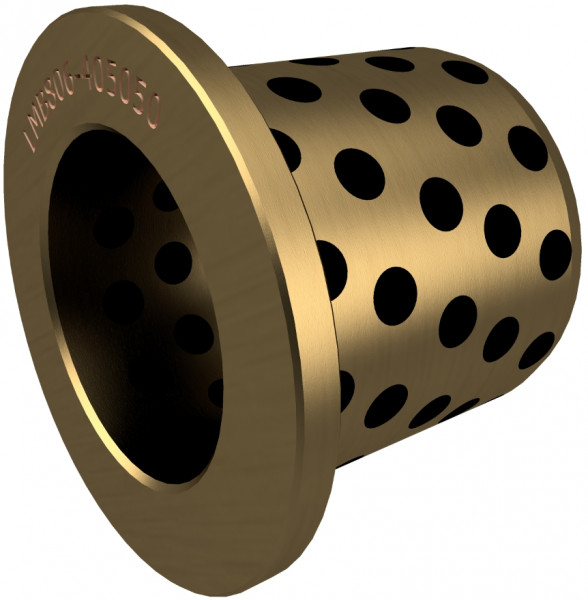

Sliding Bearing Flanged - Cylindrical Bushing - LUB-MET - Bronze - PTFE - 35/45/605x30 mm

  • Item number: 71394
  • Brand: GLT
local_shipping Shipped in 3 - 4 - Day(s)
Choose inner diameter
6 mm
8 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
18 mm
19 mm
20 mm
25 mm
26 mm
28 mm
30 mm
32 mm
35 mm
40 mm
42 mm
45 mm
48 mm
50 mm
55 mm
60 mm
62 mm
63 mm
65 mm
70 mm
75 mm
80 mm
82 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
120 mm
130 mm
130.2 mm
150 mm
160 mm
200 mm
210.8 mm
232 mm
250.6 mm
340 mm
390 mm
400 mm
430 mm
450 mm
Choose outer diameter
10 mm
12 mm
13 mm
14 mm
17 mm
18 mm
19 mm
20 mm
21 mm
22 mm
24 mm
25 mm
26 mm
28 mm
29 mm
30 mm
31 mm
32 mm
33 mm
35 mm
38 mm
40 mm
42 mm
45 mm
50 mm
51 mm
52 mm
54 mm
55 mm
56 mm
58 mm
60 mm
62 mm
63 mm
65 mm
68 mm
70 mm
74 mm
75 mm
80 mm
85 mm
88 mm
89 mm
90 mm
95 mm
100 mm
102 mm
105 mm
110 mm
115 mm
120 mm
130 mm
140 mm
150 mm
155 mm
160 mm
170 mm
175 mm
180 mm
220 mm
230 mm
250 mm
280 mm
370 mm
410 mm
420 mm
480 mm
Choose length
10 mm
10.5 mm
12 mm
13 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
21.5 mm
22.5 mm
23 mm
24 mm
25 mm
26 mm
27 mm
29 mm
30 mm
31 mm
32 mm
35 mm
38 mm
40 mm
43 mm
45 mm
46 mm
48 mm
50 mm
54 mm
55 mm
57 mm
58 mm
60 mm
65 mm
68 mm
70 mm
72 mm
76 mm
80 mm
86 mm
90 mm
95 mm
100 mm
110 mm
112 mm
115 mm
120 mm
124 mm
128 mm
135 mm
160 mm
170 mm
200 mm
290 mm
315 mm
395 mm
400 mm
Choose flange diameter
16 mm
20 mm
22 mm
23 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
32 mm
35 mm
36 mm
37 mm
38 mm
40 mm
44 mm
45 mm
46 mm
47 mm
48 mm
50 mm
55 mm
57 mm
58 mm
60 mm
62 mm
65 mm
67 mm
68 mm
70 mm
75 mm
80 mm
83 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
120 mm
120.5 mm
125 mm
130 mm
135 mm
138 mm
140 mm
150 mm
155 mm
160 mm
170 mm
180 mm
185 mm
190 mm
192 mm
200 mm
210 mm
250 mm
252 mm
260 mm
280 mm
310 mm
400 mm
440 mm
460 mm
510 mm
570 mm
Choose
1
1.5
2
2.5
3
4
4.5
5
5.5
6
7
7.5
8
9
10
14
15
16
17
20
€ 18,51 incl. VAT
€ 18,51 excl. VAT
Choose inner diameter
6 mm
8 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
18 mm
19 mm
20 mm
25 mm
26 mm
28 mm
30 mm
32 mm
35 mm
40 mm
42 mm
45 mm
48 mm
50 mm
55 mm
60 mm
62 mm
63 mm
65 mm
70 mm
75 mm
80 mm
82 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
120 mm
130 mm
130.2 mm
150 mm
160 mm
200 mm
210.8 mm
232 mm
250.6 mm
340 mm
390 mm
400 mm
430 mm
450 mm
Choose outer diameter
10 mm
12 mm
13 mm
14 mm
17 mm
18 mm
19 mm
20 mm
21 mm
22 mm
24 mm
25 mm
26 mm
28 mm
29 mm
30 mm
31 mm
32 mm
33 mm
35 mm
38 mm
40 mm
42 mm
45 mm
50 mm
51 mm
52 mm
54 mm
55 mm
56 mm
58 mm
60 mm
62 mm
63 mm
65 mm
68 mm
70 mm
74 mm
75 mm
80 mm
85 mm
88 mm
89 mm
90 mm
95 mm
100 mm
102 mm
105 mm
110 mm
115 mm
120 mm
130 mm
140 mm
150 mm
155 mm
160 mm
170 mm
175 mm
180 mm
220 mm
230 mm
250 mm
280 mm
370 mm
410 mm
420 mm
480 mm
Choose length
10 mm
10.5 mm
12 mm
13 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
21.5 mm
22.5 mm
23 mm
24 mm
25 mm
26 mm
27 mm
29 mm
30 mm
31 mm
32 mm
35 mm
38 mm
40 mm
43 mm
45 mm
46 mm
48 mm
50 mm
54 mm
55 mm
57 mm
58 mm
60 mm
65 mm
68 mm
70 mm
72 mm
76 mm
80 mm
86 mm
90 mm
95 mm
100 mm
110 mm
112 mm
115 mm
120 mm
124 mm
128 mm
135 mm
160 mm
170 mm
200 mm
290 mm
315 mm
395 mm
400 mm
Choose flange diameter
16 mm
20 mm
22 mm
23 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
32 mm
35 mm
36 mm
37 mm
38 mm
40 mm
44 mm
45 mm
46 mm
47 mm
48 mm
50 mm
55 mm
57 mm
58 mm
60 mm
62 mm
65 mm
67 mm
68 mm
70 mm
75 mm
80 mm
83 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
120 mm
120.5 mm
125 mm
130 mm
135 mm
138 mm
140 mm
150 mm
155 mm
160 mm
170 mm
180 mm
185 mm
190 mm
192 mm
200 mm
210 mm
250 mm
252 mm
260 mm
280 mm
310 mm
400 mm
440 mm
460 mm
510 mm
570 mm
Choose
1
1.5
2
2.5
3
4
4.5
5
5.5
6
7
7.5
8
9
10
14
15
16
17
20
€ 18,51 incl. VAT
€ 18,51 excl. VAT
check25 years of experience
check Customer review 9,2/10
More than 15 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Specifications
In stock Yes, 121 pcs
Article number 71394
EAN 04062011111157
applicable forFor high loads, impact loads, oscillating movements, wear-resistant, insensitive to dirt, corrosion-resistant, long service life.
As tollerantief7
Diameter HuisH7
Dimensions35/45/60-5x30 mm
Dynamic load≤ 100 N/mm² N/mm2
Friction value0,03 up to 0,20 µ
Inner diameter35 mm
Maintenance requiredmaintenance free
MaterialBronze - PTFE
Material technicalCuZn25Al5
ModelCylinder liner with flange
Model 2LUB-MET
Outer diameter45 mm
Rotation speed≤ 1,0 m/s
Static Load≤ 150 N/mm² N/mm2
Temperatur range-100 up to +300 °C
TypeBB
Length30 mm
Flange Diameter60 mm
Flens dikte5
download Download/print specifications PDF
Sliding Bearing Flanged - Cylindrical Bushing - LUB-MET - Bronze - PTFE - 35/45/605x30 mm
Product description

Sliding Bearing Flanged - Cylindrical Bushing - LUB-MET - Bronze - PTFE - 35/45/605x30 mm


LUB-MET is a maintenance-free plain bearing. However, initial lubrication is necessary. For high loads, shock loads, wear-resistant, insensitive to dirt, corrosion-resistant, long service life.
Solid bronze plain bearing | Maintenance-free | With solid lubricant deposits in the sliding surface | Version available with water-resistant solid lubricant
