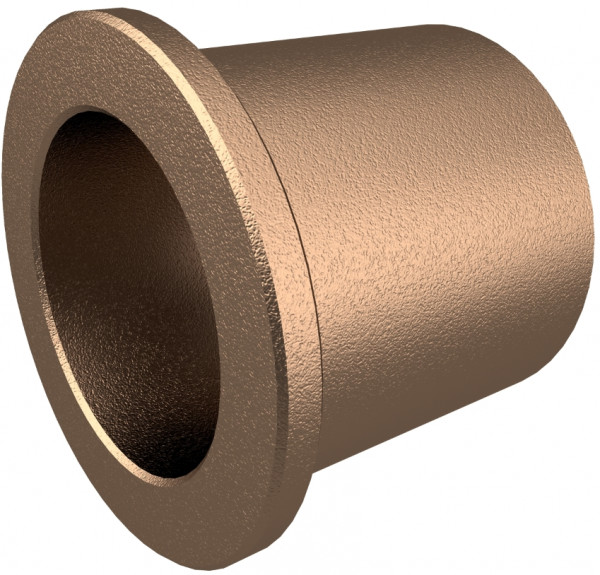

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 45/55/657x63 mm

  • Article number: 73728
Choose inner diameter
3
4
5
6
6.375
7
7.912
8
9
10
12
12.7
14
15
16
18
20
22
25
25.4
26
28
30
32
35
36
40
45
50
50.8
55
60
65
70
75
80
85
90
100
Choose outer diameter
5
6
8
9
10
11
11.176
12
12.7
13
14
15
15.5
16
17
18
19
19.05
20
21
22
24
25
26
27
28
29
30
31.75
32
33
35
36
38
40
42
44
45
46
50
51
55
56
58
60
63.5
65
70
72
75
80
85
95
100
110
115
120
Choose length
2.5
4
4.5
5
6
7
8
10
11
11.5
12
12.7
14
14.5
15
16
17
17.5
18
19
19.05
20
22
23
24
25
25.4
26
26.5
28
30
32
35
36
39
40
40.5
45
50
55
60
60.325
63
70
80
93
100
Choose flange diameter
8
9
10
12
13
14
14.29
15
15.875
16
17
18
19
20
22
22.225
23
24
25
25.4
26
27
28
30
31
32
33
34
35
36
38
38.1
39
40
44
45
46
48
50
52
53
54
55
57
58
60
62
63
65
67
68
70
73
75
76.2
80
82
83
84
85
95
105
110
120
125
130
Choose thickness
1,5
2
2,5
3
3,5
4
4,5
5
6
7
8
Choose flange thickness
1
1.5
1.52
1.588
1.651
2
2.5
3
3.5
3.175
4
4.5
5
5.5
6
7
8
9.525
10
Choose inner diameter
3
4
5
6
6.375
7
7.912
8
9
10
12
12.7
14
15
16
18
20
22
25
25.4
26
28
30
32
35
36
40
45
50
50.8
55
60
65
70
75
80
85
90
100
Choose outer diameter
5
6
8
9
10
11
11.176
12
12.7
13
14
15
15.5
16
17
18
19
19.05
20
21
22
24
25
26
27
28
29
30
31.75
32
33
35
36
38
40
42
44
45
46
50
51
55
56
58
60
63.5
65
70
72
75
80
85
95
100
110
115
120
Choose length
2.5
4
4.5
5
6
7
8
10
11
11.5
12
12.7
14
14.5
15
16
17
17.5
18
19
19.05
20
22
23
24
25
25.4
26
26.5
28
30
32
35
36
39
40
40.5
45
50
55
60
60.325
63
70
80
93
100
Choose flange diameter
8
9
10
12
13
14
14.29
15
15.875
16
17
18
19
20
22
22.225
23
24
25
25.4
26
27
28
30
31
32
33
34
35
36
38
38.1
39
40
44
45
46
48
50
52
53
54
55
57
58
60
62
63
65
67
68
70
73
75
76.2
80
82
83
84
85
95
105
110
120
125
130
Choose thickness
1,5
2
2,5
3
3,5
4
4,5
5
6
7
8
Choose flange thickness
1
1.5
1.52
1.588
1.651
2
2.5
3
3.5
3.175
4
4.5
5
5.5
6
7
8
9.525
10
Delivery time or price unknown. Request a quote for price and delivery time.
Quick navigation:
Product description
Specifications
Specifications
Article number 73728
EAN 04062011149532
applicable forSuitable for high sliding speed at low load capacity. Series production for high quantities.
Dimensions45/55/65-7x63 mm
Dynamic load≤ 5 N/mm² N/mm2
Friction value0,09 up to 0,15 µ
Housing diameterH7
Inner diameter45 mm
Maintenance requiredMaintenance-free
MaterialSintered bronze
Material technicalBronze (CuSn10/SINT B50)
ModelCylinder liner with flange
Model 2SIB-MET
NormDIN 1850 / ISO 2795
Outer diameter55 mm
Rotation speed≤ 6,0 m/s
Shaft tolerancef7
Static Load≤ 50 N/mm² N/mm2
Temperatur range-20 up to +100 °C
TypeBB
Length63 mm
Flange Diameter65 mm
Flange thickness7
Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 45/55/657x63 mm
Product description

Cylindrical Bearing - Slide Bearing Flanged - SIB-MET - Sintered Bronze - 45/55/657x63 mm
SIB-MET is a self-lubricating and maintenance-free plain bearing. Suitable for high speeds at low loads.
Sintered bronze plain bearings | Maintenance-free | Oil-impregnated | Self-lubricating | DIN 1850 / ISO 2903
