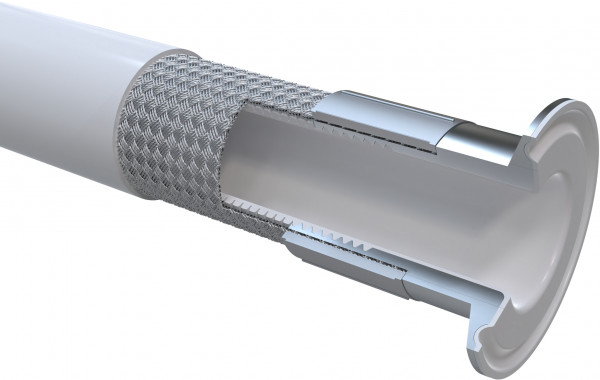

PTFE Hose with Stainless Steel 304 braided core and Silicone Cover – Complete with Tri Clamp Flanges – Flared PTFE Ends - DN50 - 2m

DN50 PTFE Process Hose with Silicone Cover – 2m | Tri-Clamp | AISI 304

This ready-to-use 2m PTFE hose is designed for hygienic and chemically demanding process fluid applications. The DN50 size (50,8 mm) is suited to high flow volumes and large production lines. Both ends include pre-mounted Tri-Clamp flanges (size 2 inch (DN50), DIN 32676).

Why Tri-Clamp with PTFE and Silicone Cover?

Tri-Clamp connections are the hygienic industry standard: tool-free assembly, fully CIP/SIP compatible and seamlessly integrated into existing hose systems. The PTFE inner bore provides unmatched chemical resistance, while the white silicone outer cover protects against corrosion and external damage.

Technical Data

Nominal diameter: DN50 — outer diameter 50,8 mm
Length: 2m (available in multiple lengths)
Working pressure: 30 bar | Burst pressure: 120 bar
Temperature range: −54°C to +180°C
Inner bore: PTFE (smooth bore)
Reinforcement: Braided AISI 304 stainless steel
Outer cover: White silicone, pharmaceutical-grade
Connections: Tri-Clamp 2 inch (DN50), pre-assembled, to DIN 32676

Typical Applications

• Food and beverage industry – hygienic fluid transfer
• Pharmaceutical production – sterile connections and SIP processes
• Chemical process engineering – resistance to aggressive chemicals
• Biotechnology and cosmetics – large industrial processes, bulk transfer and main pipework

Compliant with FDA 21 CFR 177.1550, EU 10/2011 and USP Class VI. Suitable for direct contact with foodstuffs and pharmaceutical products.

Can this hose be used for steam sterilisation?

Yes. The maximum temperature of +180°C and the PTFE inner bore make the hose suitable for SIP (Sterilisation-in-Place) and low-pressure steam applications.
