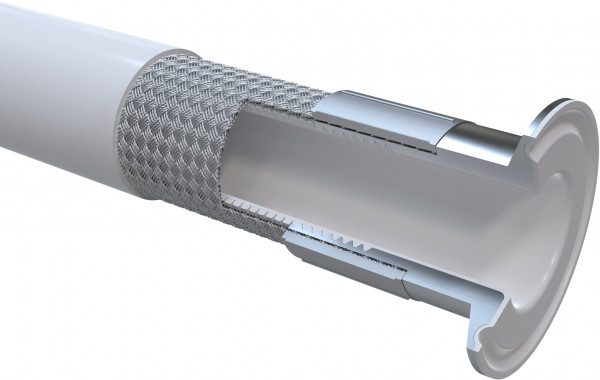

PTFE Hose with Stainless Steel 304 braided core and Silicone Cover – Complete with Tri Clamp Flanges – Flared PTFE Ends - DN50 - 10m

Complete Hose Assembly PTFE/DN50/Silicone – 10m with Pre-Mounted Tri-Clamp Couplings

This fully pre-assembled hose system for the DN50 size (50,8 mm) is supplied as a 10m hose with two professionally mounted Tri-Clamp flanges (to DIN 32676, size 2 inch (DN50)). No assembly required — ready for immediate use.

Benefits of a Pre-Assembled PTFE Hose

• Time saving – no on-site assembly, reduced downtime
• Guaranteed leak-free performance – professionally assembled and inspected
• Immediate readiness – 10m length, designed for long connection runs and extended process installations
• Hygienic compliance – FDA, EU 10/2011 and USP Class VI certified

Material System and Construction

Smooth PTFE inner bore – Chemically near-inert polytetrafluoroethylene inner surface. Minimal friction, no contamination risk, resistant to virtually all process fluids including strong acids, bases and solvents.

Corrugated structure – The outer wall of the PTFE core is corrugated for maximum flexibility whilst maintaining pressure resistance up to 30 bar.

AISI 304 braided reinforcement – Mechanical protection and pressure resistance up to 30 bar working pressure and 120 bar burst pressure.

White silicone cover – Extruded pharmaceutical-grade silicone to protect the braid and ensure HACCP compliance (colour coding).

Applications and Sectors

This DN50 hose is particularly suited to high flow volumes and large production lines in hygienic environments. Typical sectors include food and beverage, pharmaceutical manufacturing, chemical process engineering and bioproduction. For large industrial processes, bulk transfer and main pipework, the DN50 version offers the optimum balance between flow capacity and ease of installation.

Which gasket do I use with a DN50 Tri-Clamp?

For DN50 flanges (size 2 inch (DN50), DIN 32676), use a standard Tri-Clamp gasket with 50,8 mm outer diameter. PTFE or EPDM gaskets are most common for food and pharmaceutical applications.
