| Delivery time | Request a quote |
| Article number | 48127 |
| EAN | 6096002495481 |
| applicable for | Drinking water, alcoholic beverages up to 92%, fruit juice and fatty products. |
| Barst pressure | 30 bar |
| Color | Blue |
| Color | White |
| Connection | Incl. 2x DIN11851 Point piece/Unit |
| Diameter Hose | 63 |
| Dimensions | 2m |
| Inner diameter | 63.5 mm |
| Inner surface | Butyl/IIR |
| Insert | Strong synthetic textile inserts and steel spiral |
| Material | Silicone |
| Minimum bend radius | 63.5 mm |
| Model | Food hose (suction/pressure) |
| Model 2 | Completely assembled hose |
| Norm | FDA, 1935/2004/CE, 1907/2006CE (REACH), 3A Sanitary Standard Class II |
| Outer diameter | 76.5 mm |
| Outer surface | EPDM |
| Side A - Size | DIN 11851 Union nut/socket DN63 |
| Side B - Size | DIN 11851 Union nut/socket DN63 |
| Size | DIN 11851 Point piece/Unit |
| Size | DN65 |
| Temperatur range | -40°C/+120°C (Max 30min to +150°C) |
| Wall Thickness | 6.5 mm |
| Work pressure | 10 bar |
| Koppelmaat Zuivelkoppeling | DN63 |
| Length | 2m |
| attachment |  |
| Also found under | |
| All Hoses | Hoses with Couplings | |

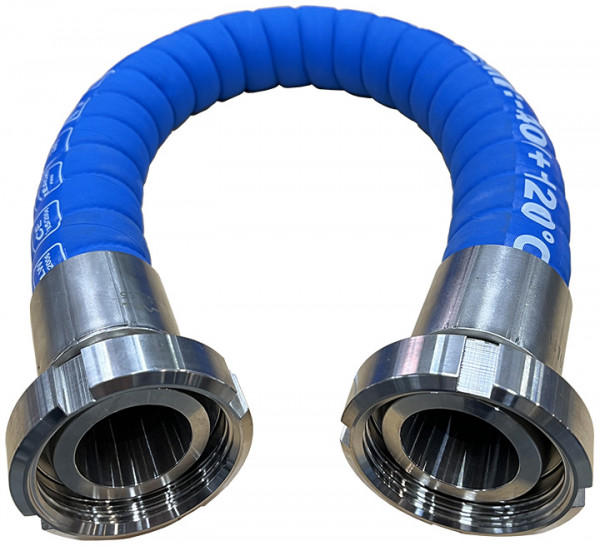

The dairy hose complete is the ideal solution when you need a complete hose for your installation without having to assemble the couplings on it yourself. We have already done this for you. The hose is delivered fully assembled so that it can be put into use immediately. We make the hoses per order, so different lengths and other types of couplings are no problem for us. Every hose we supply is hydrostatically tested. These test reports are available from us on request. We mount stainless steel 316 couplings on this dairy hose according to the DIN 11851 standard. The standard version of this hose has a point piece and swivel on both sides, mounted by means of a press sleeve, for the most hygienic connection. This makes the hose suitable for the most common applications in the food industry such as dairy farms, cheese factories, distilleries, breweries and other food production companies. The dairy hose is extremely suitable for juices and drinks with a high alcohol percentage.
The complete dairy hose meets the following standards:
✔ FDA
✔ 1935/2004/CE
✔ 1907/2006CE (REACH)
✔ 3A Sanitary Standard Class II
op 08-05-2025 12:43
It doesn’t hold odors and is very easy to clean. A solid hose for any dairy farm!
