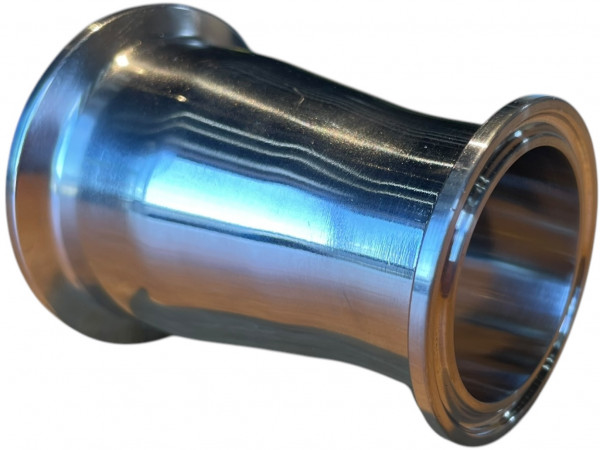

Tri Clamp Fitting - DIN 32676 - reducer - Clamp x Clamp - DN40 - DN20 - Fl.50,5 x 34 - SS

This Tri-Clamp coupling functions as a reliable reducer between two Tri-Clamp systems of different diameters, allowing a hygienic and leak-free connection between DN40 and DN20 pipes. It is ideal for use in the food, beverage, pharmaceutical, and process industries where hygiene, durability, and easy installation are essential.

Made from high-quality stainless steel 316 (1.4401 / AISI 316), this reducer ensures excellent corrosion resistance and long service life. The coupling maintains hygienic standards according to DIN and ISO norms while providing a secure connection.

Features
Connection: Clamp x Clamp reducer from DN40 to DN20
Material: SS316 (1.4401 / AISI 316)
Hygienic and durable design
Easy to install and clean
Suitable for CIP/SIP cleaning
Corrosion-resistant and compatible with process fluids

Applications
Food production, breweries, dairy processing, pharmaceutical installations, chemical industry, process facilities, and liquid transfer between pipelines

Keywords
Tri-Clamp reducer, DN40 to DN20 coupling, Clamp x Clamp adapter, SS316 hygienic coupling, DIN 32676 process fitting, stainless steel reducer, Tri-Clamp DN40 DN20

FAQ

What is this Tri-Clamp reducer used for?
It is used to hygienically connect two Tri-Clamp pipes of different diameters, for example in process installations where pipe sizes vary.

What material is the coupling made from?
The coupling is made from stainless steel 316 (1.4401 / AISI 316), offering high corrosion resistance and long service life.

Which pipe sizes can be connected with this coupling?
This coupling connects DN40 and DN20 Tri-Clamp pipes, with flange diameters of 50.5 mm and 34 mm respectively.

Is the coupling suitable for CIP/SIP cleaning?
Yes, the smooth stainless steel surface and hygienic design make it fully suitable for Clean-in-Place and Sterilize-in-Place procedures.

Is the gasket included?
This depends on the supplier. The matching EPDM or PTFE gasket is often supplied separately.

What is the pressure and temperature range of this coupling?
The coupling is typically suitable for working pressures up to 25 bar and temperatures from -20°C to +200°C, depending on the gasket used.

Are other sizes or versions available?
Yes, Tri-Clamp reducers are available for other pipe sizes and flange diameters depending on the application.

How do I maintain and clean this coupling correctly?
Clean the coupling with warm water, steam, or CIP/SIP cleaning agents. Avoid abrasive materials that could damage the surface.

Which standards and certifications does this product comply with?
This coupling complies with DIN and ISO standards for process components and hygienic guidelines such as EHEDG.
