| Delivery time | Shipped in 2 - 3 - Day(s) |
| Article number | 46794 |
| EAN | 6096001810858 |
| Color | Silver |
| Connection | 25.4x1.65mm |
| Dimension A | 43mm |
| Dimension B | 25,4mm |
| Dimensions | Inch |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4404) |
| Model | Pieces of wire |
| Roughness Material | <0,8 µm |
| Size | 1" |
| Type 2 | Welding wire piece - Long |
| Wall Thickness | 1,65mm |
| Welding dimensions | 25.4 |
| Work pressure | 40 |

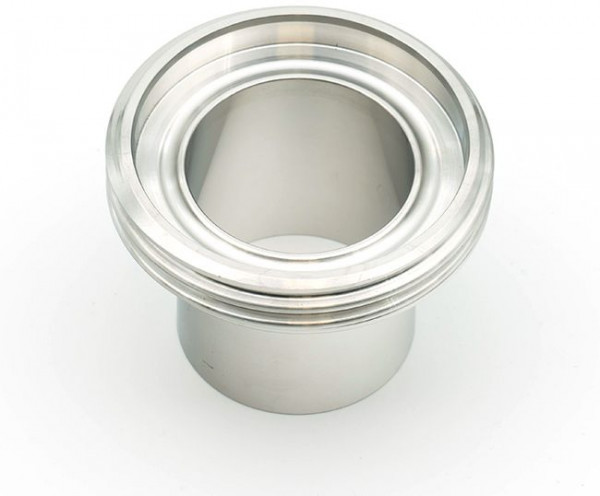

Aseptic coupling DIN 11864 weld male DN10 stainless steel 316 high-quality hygienic fitting for sterile process connections. Perfect for food, pharmaceutical, and biotechnology applications. This coupling ensures a reliable, leak-free connection with excellent cleanability according to the highest hygienic standards.
Keywords
aseptic coupling, DIN 11864, stainless steel 316, weld male, 1/2", hygienic coupling, process connection, food industry, pharmaceutical coupling, stainless steel, biotechnology, weld fitting, sterile connection
FAQ
What is an aseptic coupling DIN 11864 used for
This coupling is used in process systems where sterility and hygiene are essential, such as in the food, pharmaceutical, and biotechnology industries.
Why is stainless steel 316 the best choice
Stainless steel 316 offers superior corrosion resistance against aggressive chemicals and cleaning agents, making it ideal for aseptic applications.
Is this weld male part compatible with other DIN 11864 components
Yes, it is fully compatible with all components that comply with the DIN 11864 standard, such as nuts, seals, and couplings.
How do I maintain an aseptic coupling
This coupling can be easily cleaned through CIP (Cleaning in Place) and SIP (Sterilisation in Place) systems without disassembly.
What sizes are available for this weld male part
In addition to 1/2", this weld male part is also available in 3/4", 1", 1 1/2", 2", 2 1/2", 3", and 4".
Is this coupling easy to replace
Yes, the coupling consists of separate components, such as the weld male part, the union nut, and the seal. This allows you to replace a single part without disassembling the entire connection.
