| Delivery time | Shipped in 2 - 3 - Day(s) |
| Article number | 46782 |
| EAN | 6096026167142 |
| Color | Silver |
| Connection | 13x1.5mm |
| Dimension A | 41mm |
| Dimension B | 13mm |
| Dimensions | DIN |
| Material | Stainless steel 316 |
| Material technical | Stainless steel 316 (1.4404) |
| Model | Pieces of wire |
| Roughness Material | <0,8 µm |
| Size | DN10 |
| Type 2 | Welding wire piece - Long |
| Wall Thickness | 1,5mm |
| Welding dimensions | 13 |
| Work pressure | 40 |

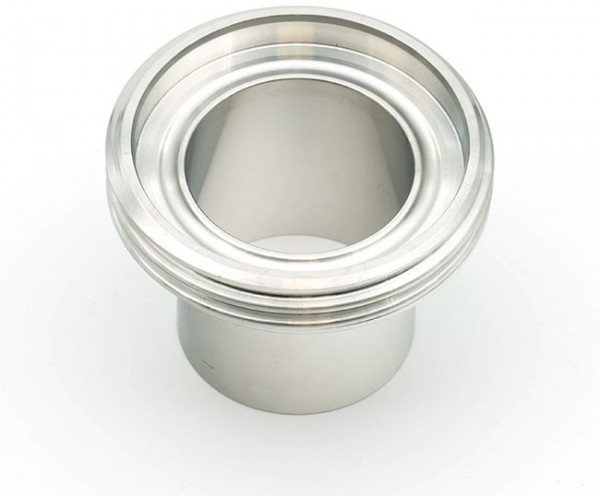

Aseptic coupling DIN 11864 weld male DN10 stainless steel 316 – premium hygienic fitting for sterile process systems. Ideal for food, pharmaceutical, and biotechnology industries requiring reliable, leak-free, and easy-to-clean connections. Fully compliant with international hygienic standards and made for maximum cleanliness and durability.
Keywords: aseptic coupling, DIN 11864, stainless steel 316, weld male, DN10, hygienic connection, process fitting, food industry, pharmaceutical fitting, biotech connection, sterile coupling, stainless steel.
FAQ
What is an aseptic coupling used for?
It’s used in hygienic and sterile process installations where contamination-free connections are critical, such as food, pharmaceutical, and biotech industries.
What does DIN 11864 stand for?
DIN 11864 is a German and international standard defining aseptic and hygienic couplings for use in sterile process environments.
Why use stainless steel 316?
Stainless steel 316 offers superior corrosion resistance, durability, and is suitable for aggressive cleaning agents used in hygienic systems.
Is the weld male part compatible with other DIN 11864 components?
Yes, it is fully compatible with all DIN 11864-compliant parts including union nuts, seals, and couplings.
How should it be cleaned?
It supports both CIP (Cleaning in Place) and SIP (Sterilization in Place), allowing full sterilization without disassembly.
What sizes are available?
This weld male is available in DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 and DN100 sizes depending on system requirements.
Is this coupling easy to replace?
Yes, the coupling consists of separate components, such as the weld male part, the union nut, and the seal. This allows you to replace a single part without disassembling the entire connection.
