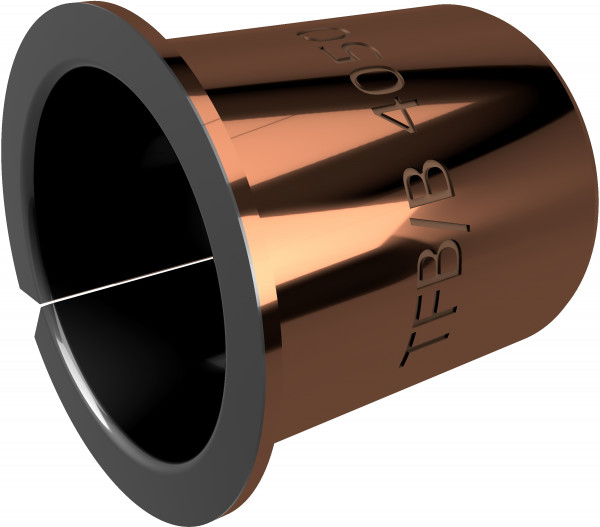

Cylindrical Bushing Flanged - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 5/7/101x5 mm

  • Item number: TFB_B.0505
  • Brand: GLT
Delivery time unknown.
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
25 mm
30 mm
32 mm
35 mm
40 mm
45 mm
50 mm
52 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
120 mm
140 mm
150 mm
160 mm
180 mm
200 mm
220 mm
300 mm
430 mm
Choose outer diameter
4.5 mm
5.5 mm
7 mm
8 mm
9 mm
10 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
20 mm
23 mm
25 mm
28 mm
34 mm
36 mm
39 mm
44 mm
50 mm
55 mm
57 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
105 mm
125 mm
145 mm
155 mm
165 mm
185 mm
205 mm
225 mm
305 mm
435 mm
Choose length
3.5 mm
4 mm
5 mm
5.5 mm
5.8 mm
6 mm
7 mm
7.5 mm
8 mm
9 mm
9.5 mm
10 mm
11 mm
11.5 mm
12 mm
12.5 mm
13.5 mm
14 mm
14.5 mm
15 mm
16 mm
16.5 mm
17 mm
17.5 mm
18 mm
20 mm
21 mm
21.5 mm
22 mm
22.5 mm
24 mm
25 mm
26 mm
26.5 mm
27 mm
27.5 mm
28 mm
30 mm
31.5 mm
32 mm
32.5 mm
35 mm
36 mm
37.5 mm
40 mm
42 mm
42.5 mm
43 mm
45 mm
47.5 mm
50 mm
52 mm
52.5 mm
57.5 mm
60 mm
61 mm
62 mm
62.5 mm
70 mm
72.5 mm
75 mm
79.5 mm
80 mm
82.5 mm
90 mm
92.5 mm
100 mm
102.5 mm
135 mm
150 mm
Choose flange diameter
7 mm
9 mm
10 mm
12 mm
13 mm
15 mm
18 mm
20 mm
22 mm
23 mm
24 mm
26 mm
30 mm
33 mm
35 mm
42 mm
46 mm
47 mm
53 mm
58 mm
65 mm
67 mm
70 mm
75 mm
80 mm
82 mm
85 mm
90 mm
95 mm
100 mm
110 mm
120 mm
132 mm
140 mm
150 mm
165 mm
180 mm
200 mm
220 mm
235 mm
240 mm
320 mm
455 mm
Choose
0.75
1
1.5
2
2.5
€ 1,05 per piece(s) incl. VAT
€ 1,05 excl. VAT
Choose inner diameter
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
18 mm
20 mm
22 mm
25 mm
30 mm
32 mm
35 mm
40 mm
45 mm
50 mm
52 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
120 mm
140 mm
150 mm
160 mm
180 mm
200 mm
220 mm
300 mm
430 mm
Choose outer diameter
4.5 mm
5.5 mm
7 mm
8 mm
9 mm
10 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
20 mm
23 mm
25 mm
28 mm
34 mm
36 mm
39 mm
44 mm
50 mm
55 mm
57 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
105 mm
125 mm
145 mm
155 mm
165 mm
185 mm
205 mm
225 mm
305 mm
435 mm
Choose length
3.5 mm
4 mm
5 mm
5.5 mm
5.8 mm
6 mm
7 mm
7.5 mm
8 mm
9 mm
9.5 mm
10 mm
11 mm
11.5 mm
12 mm
12.5 mm
13.5 mm
14 mm
14.5 mm
15 mm
16 mm
16.5 mm
17 mm
17.5 mm
18 mm
20 mm
21 mm
21.5 mm
22 mm
22.5 mm
24 mm
25 mm
26 mm
26.5 mm
27 mm
27.5 mm
28 mm
30 mm
31.5 mm
32 mm
32.5 mm
35 mm
36 mm
37.5 mm
40 mm
42 mm
42.5 mm
43 mm
45 mm
47.5 mm
50 mm
52 mm
52.5 mm
57.5 mm
60 mm
61 mm
62 mm
62.5 mm
70 mm
72.5 mm
75 mm
79.5 mm
80 mm
82.5 mm
90 mm
92.5 mm
100 mm
102.5 mm
135 mm
150 mm
Choose flange diameter
7 mm
9 mm
10 mm
12 mm
13 mm
15 mm
18 mm
20 mm
22 mm
23 mm
24 mm
26 mm
30 mm
33 mm
35 mm
42 mm
46 mm
47 mm
53 mm
58 mm
65 mm
67 mm
70 mm
75 mm
80 mm
82 mm
85 mm
90 mm
95 mm
100 mm
110 mm
120 mm
132 mm
140 mm
150 mm
165 mm
180 mm
200 mm
220 mm
235 mm
240 mm
320 mm
455 mm
Choose
0.75
1
1.5
2
2.5
€ 1,05 per piece(s) incl. VAT
€ 1,05 excl. VAT
check25 years of experience
check Customer review 9,2/10
Delivery time unknown. Request a quote for price and delivery time.
More than 240 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • Alternative for INA - Permaglide PAF55P11
  • Alternative for INA - Permaglide EGF55E40-B
Specifications
Article number TFB_B.0505
EAN 04062011171434
applicable forExcellent sliding and wear behaviour, for all types of movement, high load capacity, good corrosion resistance.
As tollerantief7
Diameter HuisH7
Dimensions5/7/10-1x5 mm
Dynamic load≤ 140 N/mm² N/mm2
Friction value0,02 up to 0,18 µ
Inner diameter5 mm
Maintenance requiredMaintenance-free
Materiaal Glij oppervlakPTFE
MaterialSintered Bronze / PTFE
Material technicalbronze (CuSn6)
ModelCylinder liner with flange
Model 2TEF-MET/B
Model DescriptionBearing bush - Plain bearing
NormDIN 1494 / ISO 3547
Outer diameter7 mm
Rotation speed<2,5 m/s
Static Load≤ 200 N/mm² N/mm2
Temperatur range–200 to + 280 °C
TypeBB
Length5 mm
Flange Diameter10 mm
Flens dikte1
Dimensions and weight
Length/depth0,5 cm
Width0,7 cm
Height0,7 cm
Dimension0,5 x 0,7 x 0,7 cm ( L x B x H)
Packaging dimensions
Length0,5 cm
Width0,7 cm
Height0,7 cm
Weight0 kg
download Download/print specifications PDF
Cylindrical Bushing Flanged - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 5/7/101x5 mm
Product description

Cylindrical Bushing Flanged - Plain Bearing - TEF-MET/B - Sintered Bronze / PTFE - 5/7/101x5 mm


TEF-MET/B is a versatile, corrosion-resistant dry sliding bearing with PTFE sliding layer. Therefore, no lubrication is necessary. However, additional lubrication is possible in principle!
Wrapped composite sliding bearing Bronze / PTFE coated | Maintenance-free dry sliding bearing | DIN 1494 / ISO 3547 | Corrosion resistance
