| Article number | TFZ.175120 |
| EAN | 04062011180733 |
| applicable for | Excellent sliding- and wear behaviour, for all types of movement, high load capacity, all-round adaptable. |
| Dimensions | 175/180x120 mm |
| Dynamic load | ≤ 140 N/mm² N/mm2 |
| Friction value | 0,02 up to 0,18 µ |
| Housing diameter | H7 |
| Inner diameter | 175 mm |
| Maintenance required | Maintenance-free |
| Material | Steel / PTFE |
| Material technical | Steel tin-plated (1.0330) + Sintered Bronze + PTFE |

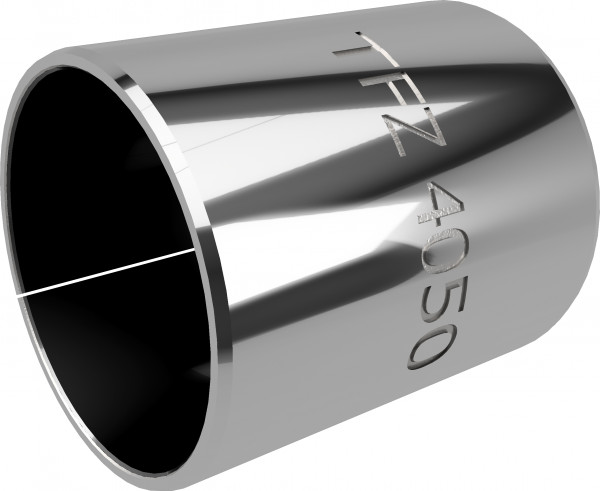

| Model | Cylinder liner |
| Model 2 | TEF-MET |
| Model Description | Bearing bush - Plain bearing |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 180 mm |
| Rotation speed | ≤ 2,5 m/s |
| Shaft tolerance | f7 |
| Sliding surface material | PTFE |
| Static Load | ≤ 250 N/mm² N/mm2 |
| Temperatur range | – 200 up to + 280 °C |
| Type | ZB |
| Length | 120 mm |
| Dimensions and weight | |
| Length/depth | 12 cm |
| Width | 18 cm |
| Height | 18 cm |
| Dimension | 12 x 18 x 18 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 12 cm |
| Width | 18 cm |
| Height | 18 cm |
| Weight | 0 kg |
