| In stock | Yes, 266 pcs |
| Article number | TFZ_B.4050 |
| EAN | 04062011192804 |
| applicable for | Excellent sliding and wear behaviour, for all types of movement, high load capacity, good corrosion resistance. |
| Dimensions | 40/44x50 mm |
| Dynamic load | ≤ 140 N/mm² N/mm2 |
| Friction value | 0,02 up to 0,18 µ |
| Housing diameter | H7 |
| Inner diameter | 40 mm |
| Maintenance required | Maintenance-free |
| Material | Sintered Bronze / PTFE |
| Material technical | bronze (CuSn6) |
| Model | Cylinder liner |
| Model 2 | TEF-MET/B |

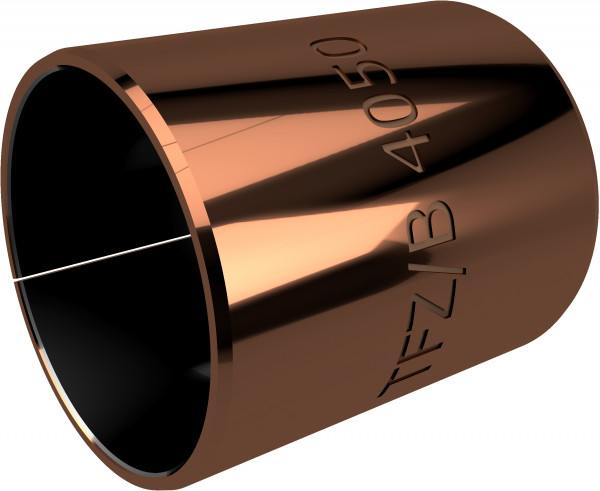

| Model Description | Bearing bush - Plain bearing |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 44 mm |
| Rotation speed | <2,5 m/s |
| Shaft tolerance | f7 |
| Sliding surface material | PTFE |
| Static Load | ≤ 200 N/mm² N/mm2 |
| Temperatur range | –200 to + 280 °C |
| Type | ZB |
| Length | 50 mm |
| Dimensions and weight | |
| Length/depth | 5 cm |
| Width | 4,4 cm |
| Height | 4,4 cm |
| Dimension | 5 x 4,4 x 4,4 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 5 cm |
| Width | 4,4 cm |
| Height | 4,4 cm |
| Weight | 0 kg |
