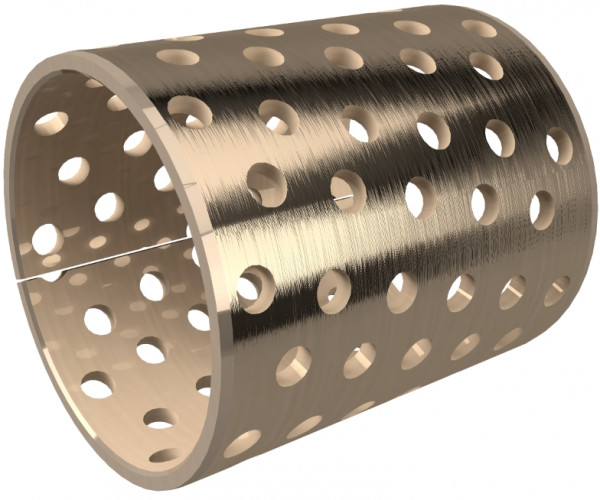

Sliding bearing - Cylindrical Bearing - BRO-MET L - Bronze - 20/23x40 mm

  • Item number: BMZ_L.2040B
  • Brand: GLT
Delivery time unknown.
Choose inner diameter
5 mm
6 mm
8 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
17 mm
18 mm
20 mm
22 mm
22.225 mm
24 mm
25 mm
26 mm
28 mm
30 mm
32 mm
34 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
50 mm
55 mm
60 mm
63 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
165 mm
170 mm
175 mm
180 mm
185 mm
190 mm
195 mm
200 mm
210 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
250 mm
260 mm
265 mm
280 mm
285 mm
300 mm
340 mm
350 mm
Choose outer diameter
7 mm
8 mm
10 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
21 mm
22 mm
23 mm
25 mm
25.4 mm
27 mm
28 mm
30 mm
31 mm
32 mm
34 mm
36 mm
38 mm
39 mm
40 mm
42 mm
44 mm
46 mm
48 mm
50 mm
55 mm
60 mm
65 mm
68 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
165 mm
170 mm
175 mm
180 mm
185 mm
190 mm
195 mm
200 mm
205 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
245 mm
255 mm
265 mm
270 mm
285 mm
290 mm
305 mm
345 mm
355 mm
Choose length
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
22 mm
23 mm
24 mm
25 mm
28 mm
28.575 mm
29.5 mm
30 mm
31 mm
32 mm
35 mm
37 mm
38 mm
40 mm
43 mm
45 mm
49 mm
50 mm
55 mm
60 mm
65 mm
70 mm
74 mm
75 mm
80 mm
90 mm
92 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
140 mm
150 mm
155 mm
160 mm
230 mm
€ 5,68 per piece(s) incl. VAT
€ 5,68 excl. VAT
Choose inner diameter
5 mm
6 mm
8 mm
10 mm
12 mm
13 mm
14 mm
15 mm
16 mm
17 mm
18 mm
20 mm
22 mm
22.225 mm
24 mm
25 mm
26 mm
28 mm
30 mm
32 mm
34 mm
35 mm
36 mm
38 mm
40 mm
42 mm
44 mm
45 mm
50 mm
55 mm
60 mm
63 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
165 mm
170 mm
175 mm
180 mm
185 mm
190 mm
195 mm
200 mm
210 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
250 mm
260 mm
265 mm
280 mm
285 mm
300 mm
340 mm
350 mm
Choose outer diameter
7 mm
8 mm
10 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
21 mm
22 mm
23 mm
25 mm
25.4 mm
27 mm
28 mm
30 mm
31 mm
32 mm
34 mm
36 mm
38 mm
39 mm
40 mm
42 mm
44 mm
46 mm
48 mm
50 mm
55 mm
60 mm
65 mm
68 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
135 mm
140 mm
145 mm
150 mm
155 mm
160 mm
165 mm
170 mm
175 mm
180 mm
185 mm
190 mm
195 mm
200 mm
205 mm
215 mm
220 mm
225 mm
230 mm
235 mm
240 mm
245 mm
255 mm
265 mm
270 mm
285 mm
290 mm
305 mm
345 mm
355 mm
Choose length
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
22 mm
23 mm
24 mm
25 mm
28 mm
28.575 mm
29.5 mm
30 mm
31 mm
32 mm
35 mm
37 mm
38 mm
40 mm
43 mm
45 mm
49 mm
50 mm
55 mm
60 mm
65 mm
70 mm
74 mm
75 mm
80 mm
90 mm
92 mm
95 mm
100 mm
105 mm
110 mm
115 mm
120 mm
125 mm
130 mm
140 mm
150 mm
155 mm
160 mm
230 mm
€ 5,68 per piece(s) incl. VAT
€ 5,68 excl. VAT
check25 years of experience
check Customer review 9,2/10
Delivery time unknown. Request a quote for price and delivery time.
More than 45 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • Met Lubricant holes
  • Low maintenance
  • DIN 1494 / ISO 3547
  • Suitable for heavy loads
  • A larger maintenance interval due to lubrication holes
Specifications
Article number BMZ_L.2040B
EAN 04062011018869
applicable forHigh load capacity and stability at low abrasion. Because of perforations lubrication clearances are reduced to a minimum!
As tollerantief7
Diameter HuisH7
Dimensions20/23x40 mm
Dynamic load≤ 40 N/mm² N/mm2
Friction value0,05 up to 0,20 µ
gelijk aan aBRO-MET®/L is een onderhoudsarm bronzen glijlager. Een eerste smering is echter vereist. Zowel olie- als vetsmering is mogelijk. De geperforeerde reservoirs verkorten de nasmeerintervallen verder! Het biedt een hoge belastbaarheid en sterkte met lage slijtage, is geschikt voor zware bedrijfsomstandigheden en is corrosiebestendig.
gelijk aan bGewalst bronzen glijlager, geperforeerd | Onderhoudsarm | DIN 1494 / ISO 3547
gelijk aan cBRO-MET/L is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. The hole depots reduce the relubrication intervals even more! High load capacity and strength with low wear, suitable for rough operation, corrosion resistant.
gelijk aan dWrapped bronze sliding bearing with lubrication holes | Low-maintenance | DIN 1494 / ISO 3547
gelijk aan eBRO-MET®/L ist ein wartungsarmes Bronzegleitlager. Es ist jedoch eine Erstschmierung erforderlich. Sowohl Öl- oder Fettschmierung möglich. Durch die Lochdepots werden die Nachschmierintervalle noch stärker reduziert! Hohe Belastbarkeit und Festigkeit bei geringem Verschleiß, für rauen Betrieb geeignet, korrosionsbeständig.
gelijk aan fGerolltes Bronze Gleitlager durchgelocht | Wartungsarm | DIN 1494 / ISO 3547
Inner diameter20 mm
Maintenance requiredlow maintenance
MaterialBronze
Material technicalBronze (CuSn8P)
ModelCylinder liner
Model 2BRO-MET L
Model DescriptionPlain bearing with lubrication holes
NormDIN 1494 / ISO 3547
Outer diameter23 mm
Rotation speed≤ 2,5 m/s
Static Load≤ 120 N/mm² N/mm2
Temperatur range-40 up to +250 °C
TypeZB
Length40 mm
Dimensions and weight
Length/depth4 cm
Width2,3 cm
Height2,3 cm
Dimension4 x 2,3 x 2,3 cm ( L x B x H)
Packaging dimensions
Length4 cm
Width2,3 cm
Height2,3 cm
Weight0 kg
download Download/print specifications PDF
Sliding bearing - Cylindrical Bearing - BRO-MET L - Bronze - 20/23x40 mm
Product description

Sliding bearing - Cylindrical Bearing - BRO-MET L - Bronze - 20/23x40 mm


BRO-MET/L is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. The hole depots reduce the relubrication intervals even more! High load capacity and strength with low wear, suitable for rough operation, corrosion resistant.
Wrapped bronze sliding bearing with lubrication holes | Low-maintenance | DIN 1494 / ISO 3547
