| In stock | Yes, 32 pcs |
| Article number | NXZ.7545 |
| EAN | 04062011275958 |
| applicable for | Excellent sliding and wear behaviour, for all types of movement, high load capacity, good corrosion resistance. |
| Dimensions | 75/80x45 mm |
| Dynamic load | ≤ 140 N/mm² N/mm2 |
| Friction value | 0,02 up to 0,18 µ |
| Housing diameter | H7 |
| Inner diameter | 75 mm |
| Maintenance required | maintenance free |
| Material | Niro / PTFE |
| Material technical | stainless steel (1.4301) |
| Model | Cylinder liner |
| Model 2 | NOX-MET |

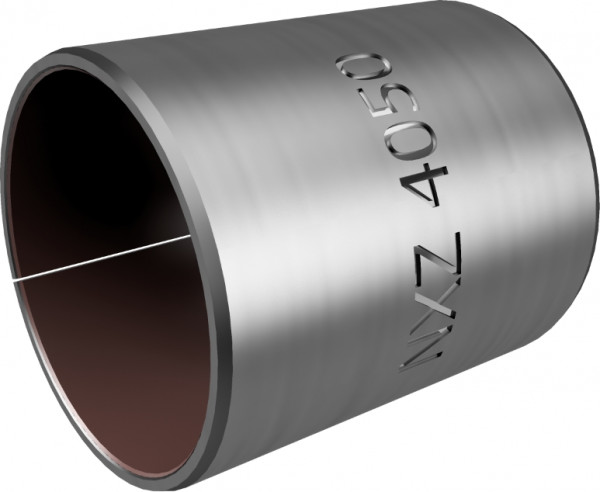

| Model Description | Maintenance-free sliding bearing |
| Norm | DIN 1494 / ISO 3547 |
| Outer diameter | 80 mm |
| Rotation speed | ≤ 2,0 m/s |
| Shaft tolerance | f7 |
| Sliding surface material | PTFE |
| Static Load | ≤ 250 N/mm² N/mm2 |
| Temperatur range | –200 to +280°C |
| Type | ZB |
| Length | 45 mm |
| Dimensions and weight | |
| Length/depth | 4,5 cm |
| Width | 8 cm |
| Height | 8 cm |
| Dimension | 4,5 x 8 x 8 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 4,5 cm |
| Width | 8 cm |
| Height | 8 cm |
| Weight | 0 kg |
