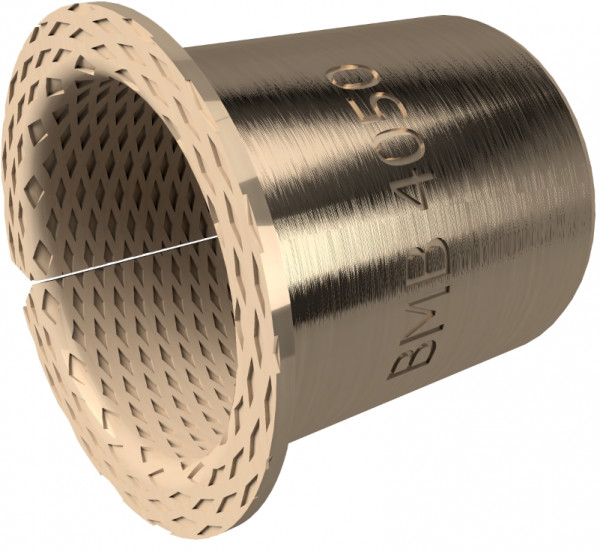

Sliding bearing Flanged - Cylindrical Bearing - BRO-MET - Bronze - 50/55/65-2.5x50 mm

Sliding bearing Flanged - Cylindrical Bearing - BRO-MET - Bronze - 50/55/65-2.5x50 mm

  • Item number: BMB.5050
  • Brand: GLT
local_shipping Before 13:00 ordered, shipped the same day
Choose inner diameter
10 mm
12 mm
14 mm
15 mm
16 mm
18 mm
20 mm
25 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
90 mm
100 mm
110 mm
115 mm
120 mm
125 mm
130 mm
140 mm
145 mm
150 mm
160 mm
170 mm
180 mm
190 mm
195 mm
200 mm
225 mm
230 mm
240 mm
250 mm
300 mm
Choose outer diameter
12 mm
14 mm
16 mm
17 mm
18 mm
20 mm
22 mm
23 mm
28 mm
31 mm
34 mm
36 mm
39 mm
40 mm
44 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
95 mm
105 mm
115 mm
120 mm
125 mm
130 mm
135 mm
145 mm
150 mm
155 mm
165 mm
175 mm
185 mm
195 mm
200 mm
205 mm
230 mm
235 mm
245 mm
255 mm
305 mm
Choose length
7 mm
8.5 mm
9 mm
10 mm
11.5 mm
12 mm
13 mm
14 mm
15 mm
16 mm
16.5 mm
17 mm
20 mm
21.5 mm
22 mm
22.5 mm
24.5 mm
25 mm
26 mm
27 mm
28 mm
30 mm
32 mm
33 mm
35 mm
37.5 mm
40 mm
45 mm
47 mm
50 mm
55 mm
60 mm
70 mm
73.5 mm
80 mm
90 mm
100 mm
110 mm
140 mm
Choose flange diameter
15 mm
18 mm
20 mm
22 mm
23 mm
24 mm
26 mm
30 mm
35 mm
38 mm
45 mm
46 mm
49 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
110 mm
120 mm
130 mm
140 mm
150 mm
155 mm
165 mm
170 mm
180 mm
190 mm
200 mm
215 mm
220 mm
225 mm
230 mm
235 mm
260 mm
265 mm
275 mm
290 mm
340 mm
Choose
1
1.5
2
2.5
€ 24,90 per piece(s) incl. VAT
€ 20,58 excl. VAT
piece(s)
Choose inner diameter
10 mm
12 mm
14 mm
15 mm
16 mm
18 mm
20 mm
25 mm
28 mm
30 mm
32 mm
35 mm
36 mm
40 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
90 mm
100 mm
110 mm
115 mm
120 mm
125 mm
130 mm
140 mm
145 mm
150 mm
160 mm
170 mm
180 mm
190 mm
195 mm
200 mm
225 mm
230 mm
240 mm
250 mm
300 mm
Choose outer diameter
12 mm
14 mm
16 mm
17 mm
18 mm
20 mm
22 mm
23 mm
28 mm
31 mm
34 mm
36 mm
39 mm
40 mm
44 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
95 mm
105 mm
115 mm
120 mm
125 mm
130 mm
135 mm
145 mm
150 mm
155 mm
165 mm
175 mm
185 mm
195 mm
200 mm
205 mm
230 mm
235 mm
245 mm
255 mm
305 mm
Choose length
7 mm
8.5 mm
9 mm
10 mm
11.5 mm
12 mm
13 mm
14 mm
15 mm
16 mm
16.5 mm
17 mm
20 mm
21.5 mm
22 mm
22.5 mm
24.5 mm
25 mm
26 mm
27 mm
28 mm
30 mm
32 mm
33 mm
35 mm
37.5 mm
40 mm
45 mm
47 mm
50 mm
55 mm
60 mm
70 mm
73.5 mm
80 mm
90 mm
100 mm
110 mm
140 mm
Choose flange diameter
15 mm
18 mm
20 mm
22 mm
23 mm
24 mm
26 mm
30 mm
35 mm
38 mm
45 mm
46 mm
49 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
95 mm
100 mm
110 mm
120 mm
130 mm
140 mm
150 mm
155 mm
165 mm
170 mm
180 mm
190 mm
200 mm
215 mm
220 mm
225 mm
230 mm
235 mm
260 mm
265 mm
275 mm
290 mm
340 mm
Choose
1
1.5
2
2.5
€ 24,90 per piece(s) incl. VAT
€ 20,58 excl. VAT
piece(s)
check25 years of experience
check Customer review 9,2/10
More than 10 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • Bronze with smear depots
  • Low mainanance
  • Corrosionproof
  • For heavy loads
Specifications
In stock Yes, 4108 pcs
Article number BMB.5050
EAN 04062011008808
applicable forHigh load capacity and stability at low abrasion, suited for rough operation, corrosion resistant.
As tollerantief7
Diameter HuisH7
Dimensions50/55/65-2.5x50 mm
Dynamic load≤ 40 N/mm² N/mm2
Friction value0,05 up to 0,12 µ
gelijk aan aBRO-MET® is een onderhoudsarm bronzen glijlager. Een eerste smering is echter vereist. Zowel olie- als vetsmering is mogelijk. De smeermiddelreservoirs verkorten de nasmeerintervallen aanzienlijk! Het biedt een hoge belastbaarheid en sterkte met lage slijtage, is geschikt voor zware bedrijfsomstandigheden en is corrosiebestendig.
gelijk aan bGewalst bronzen glijlager | Onderhoudsarm | Met smeermiddelreservoirs | DIN 1494 / ISO 3750
gelijk aan cBRO-MET is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. Due to the lubricant depots, relubrication intervals are significantly reduced! High load capacity and strength with low wear, suitable for rough operation, corrosion resistant.
gelijk aan dWrapped bronze sliding bearing with lubrication pockets/ CuSn8P (DIN 17662) | Low-maintenance | DIN 1494 / ISO 3750
gelijk aan eBRO-MET® ist ein wartungsarmes Bronzegleitlager. Es ist jedoch eine Erstschmierung er­forderlich. Sowohl Öl- oder Fettschmierung möglich. Durch die Schmierstoffdepots werden die Nachschmierintervalle stark reduziert! Hohe Belastbarkeit und Festigkeit bei geringem Verschleiß, für rauen Betrieb geeignet, korrosionsbeständig.
gelijk aan fGerolltes Bronzegleitlager | Wartungsarm | Mit Schmierstoffdepots | DIN 1494 / ISO 3750
In stock link2025-11-13
Inner diameter50 mm
Maintenance requiredlow maintenance
MaterialSS 305
Material technicalBronze (CuSn8P)
ModelCylinder liner with flange
Model 2BRO-MET
Model DescriptionGlijlager with smeerpockets
NormDIN 1494 / ISO 3547
Outer diameter55 mm
Rotation speed≤ 2,5 m/s
Static Load≤ 120 N/mm² N/mm2
Temperatur range-40 up to +250 °C
TypeBB
Length50 mm
Flange Diameter65 mm
Flens dikte2.5
Dimensions and weight
Length/depth5 cm
Width5,5 cm
Height5,5 cm
Dimension5 x 5,5 x 5,5 cm ( L x B x H)
Packaging dimensions
Length5 cm
Width5,5 cm
Height5,5 cm
Weight0 kg
Also found under
Sliding Bearings
download Download/print specifications PDF
Sliding bearing Flanged - Cylindrical Bearing - BRO-MET - Bronze - 50/55/65-2.5x50 mm
Product description

Sliding bearing Flanged - Cylindrical Bearing - BRO-MET - Bronze - 50/55/65-2.5x50 mm


BRO-MET is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. Due to the lubricant depots, relubrication intervals are significantly reduced! High load capacity and strength with low wear, suitable for rough operation, corrosion resistant.
Wrapped bronze sliding bearing with lubrication pockets/ CuSn8P (DIN 17662) | Low-maintenance | DIN 1494 / ISO 3750
