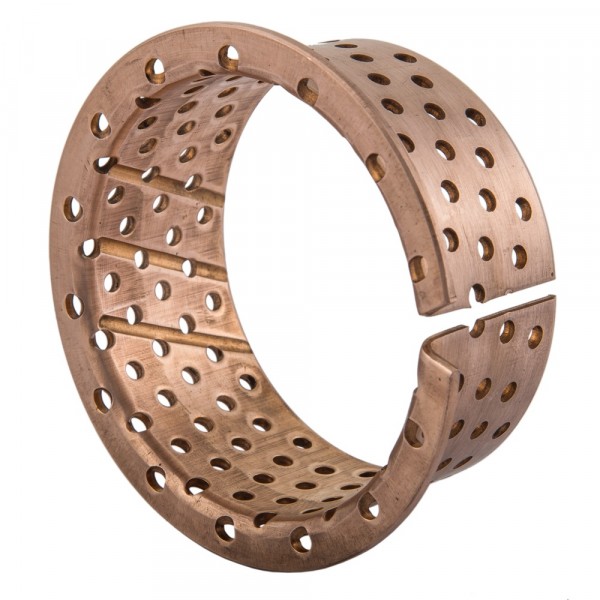

Sliding bearing Flanged - Cylindrical Bearing - BRO-MET L - Bronze - 45/50/60-2.5x45 mm

  • Item number: BMB_L.4545
  • Brand: GLT
local_shipping Shipped in 3 - 4 - Day(s)
Choose inner diameter
10 mm
12 mm
14 mm
15 mm
16 mm
18 mm
20 mm
25 mm
30 mm
31 mm
32 mm
35 mm
40 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
90 mm
100 mm
110 mm
120 mm
125 mm
130 mm
140 mm
150 mm
160 mm
170 mm
180 mm
190 mm
195 mm
200 mm
220 mm
235 mm
240 mm
250 mm
300 mm
Choose outer diameter
12 mm
14 mm
16 mm
17 mm
18 mm
20 mm
23 mm
28 mm
34 mm
36 mm
39 mm
44 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
95 mm
105 mm
115 mm
125 mm
130 mm
135 mm
145 mm
155 mm
165 mm
175 mm
185 mm
195 mm
200 mm
205 mm
225 mm
240 mm
245 mm
255 mm
305 mm
Choose length
5 mm
7 mm
9 mm
10 mm
11 mm
12 mm
13 mm
15 mm
16 mm
16.5 mm
17 mm
20 mm
21.5 mm
22 mm
25 mm
26 mm
27 mm
28 mm
30 mm
32 mm
33 mm
35 mm
37.5 mm
40 mm
45 mm
47 mm
50 mm
55 mm
60 mm
70 mm
80 mm
90 mm
100 mm
110 mm
120 mm
Choose flange diameter
18 mm
20 mm
22 mm
23 mm
24 mm
26 mm
30 mm
35 mm
45 mm
46 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
110 mm
120 mm
130 mm
140 mm
150 mm
155 mm
165 mm
180 mm
190 mm
200 mm
215 mm
225 mm
230 mm
235 mm
245 mm
265 mm
270 mm
290 mm
340 mm
Choose
1
1.5
2
2.5
€ 22,72 per piece(s) incl. VAT
€ 22,72 excl. VAT
piece(s)
Choose inner diameter
10 mm
12 mm
14 mm
15 mm
16 mm
18 mm
20 mm
25 mm
30 mm
31 mm
32 mm
35 mm
40 mm
45 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
90 mm
100 mm
110 mm
120 mm
125 mm
130 mm
140 mm
150 mm
160 mm
170 mm
180 mm
190 mm
195 mm
200 mm
220 mm
235 mm
240 mm
250 mm
300 mm
Choose outer diameter
12 mm
14 mm
16 mm
17 mm
18 mm
20 mm
23 mm
28 mm
34 mm
36 mm
39 mm
44 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
95 mm
105 mm
115 mm
125 mm
130 mm
135 mm
145 mm
155 mm
165 mm
175 mm
185 mm
195 mm
200 mm
205 mm
225 mm
240 mm
245 mm
255 mm
305 mm
Choose length
5 mm
7 mm
9 mm
10 mm
11 mm
12 mm
13 mm
15 mm
16 mm
16.5 mm
17 mm
20 mm
21.5 mm
22 mm
25 mm
26 mm
27 mm
28 mm
30 mm
32 mm
33 mm
35 mm
37.5 mm
40 mm
45 mm
47 mm
50 mm
55 mm
60 mm
70 mm
80 mm
90 mm
100 mm
110 mm
120 mm
Choose flange diameter
18 mm
20 mm
22 mm
23 mm
24 mm
26 mm
30 mm
35 mm
45 mm
46 mm
50 mm
55 mm
60 mm
65 mm
70 mm
75 mm
80 mm
85 mm
90 mm
100 mm
110 mm
120 mm
130 mm
140 mm
150 mm
155 mm
165 mm
180 mm
190 mm
200 mm
215 mm
225 mm
230 mm
235 mm
245 mm
265 mm
270 mm
290 mm
340 mm
Choose
1
1.5
2
2.5
€ 22,72 per piece(s) incl. VAT
€ 22,72 excl. VAT
piece(s)
check25 years of experience
check Customer review 9,2/10
More than 15 pieces? Click here for quote
paypal
creditCard
Google Pay
Apple Pay
Quick navigation:
Product description
Specifications
Pros and cons
  • Met Lubricant holes
  • Low maintenance
  • DIN 1494 / ISO 3547
  • Suitable for heavy loads
  • A larger maintenance interval due to lubrication holes
Specifications
In stock Yes, 44 pcs
Article number BMB_L.4545
EAN 04062011010030
applicable forHigh load capacity and stability at low abrasion. Because of perforations lubrication clearances are reduced to a minimum!
As tollerantief7
Diameter HuisH7
Dimensions45/50/60-2.5x45 mm
Dynamic load≤ 40 N/mm² N/mm2
Friction value0,05 up to 0,20 µ
Inner diameter45 mm
Maintenance requiredlow maintenance
MaterialBronze
Material technicalBronze (CuSn8P)
ModelCylinder liner with flange
Model 2BRO-MET L
Model DescriptionPlain bearing with lubrication holes
NormDIN 1494 / ISO 3547
Outer diameter50 mm
Rotation speed≤ 2,5 m/s
Static Load≤ 120 N/mm² N/mm2
Temperatur range-40 up to +250 °C
TypeBB
Length45 mm
Flange Diameter60 mm
Flens dikte2.5
Dimensions and weight
Length/depth4,5 cm
Width5 cm
Height5 cm
Dimension4,5 x 5 x 5 cm ( L x B x H)
Packaging dimensions
Length4,5 cm
Width5 cm
Height5 cm
Weight0 kg
download Download/print specifications PDF
Sliding bearing Flanged - Cylindrical Bearing - BRO-MET L - Bronze - 45/50/60-2.5x45 mm
Product description

Sliding bearing Flanged - Cylindrical Bearing - BRO-MET L - Bronze - 45/50/60-2.5x45 mm


BRO-MET/L is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. The hole depots reduce the relubrication intervals even more! High load capacity and strength with low wear, suitable for rough operation, corrosion resistant.
Wrapped bronze sliding bearing with lubrication holes | Low-maintenance | DIN 1494 / ISO 3547
